Description
General part information

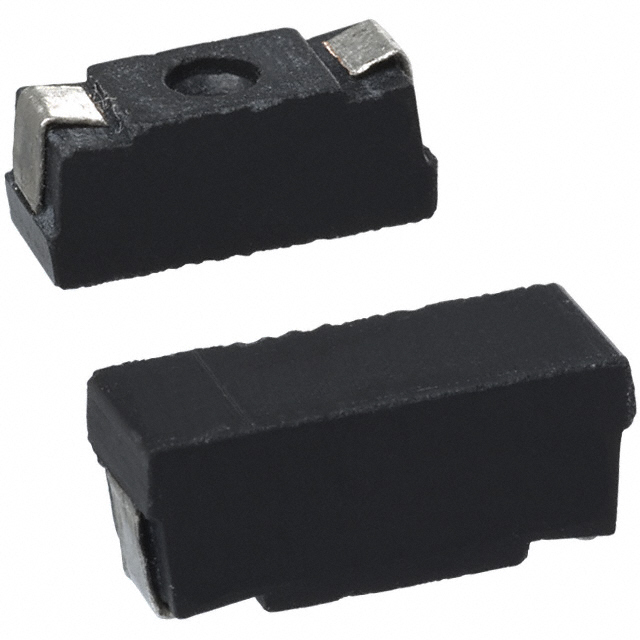

RW1S5CAR030JET
30 mOhms ±5% 1.5W Chip Resistor 3916 J-Lead Current Sense Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | RW1S5CAR030JET |
|---|---|
| Composition | Wirewound |
| Features | Current Sense |
| Height - Seated (Max) | 0.164 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 3916 J-Lead |
| Package Name | Pedestal, SMD J-Lead |
| Power (Watts) | 1.5 W |
| Resistance | 0.03 Ohms |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.159 in |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
