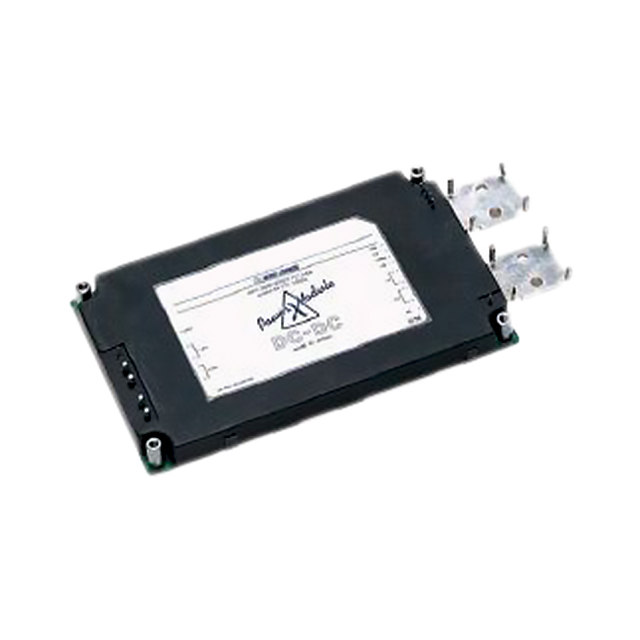

PH300S280-28
ObsoleteTDK Corporation
DC DC CONVERTER 28V 300W
PH300S280-28
ObsoleteTDK Corporation
DC DC CONVERTER 28V 300W
Description
General part information
PH300S280-28
Isolated Module DC DC Converter 1 Output 28V 10.8A 200V - 400V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PH300S280-28 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Enable, Active Low |
| Current - Output (Max) | 10.8 A |
| Features | OTP, OCP, Remote On/Off, OVP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | Module |
| Power (Watts) | 300 W |
| Size / Dimension Height | 0.5 in |
| Size / Dimension Length | 3.85 in |
| Size / Dimension Width | 1.61 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 400 VDC |
| Voltage - Input (Min) | 200 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 28 V |
