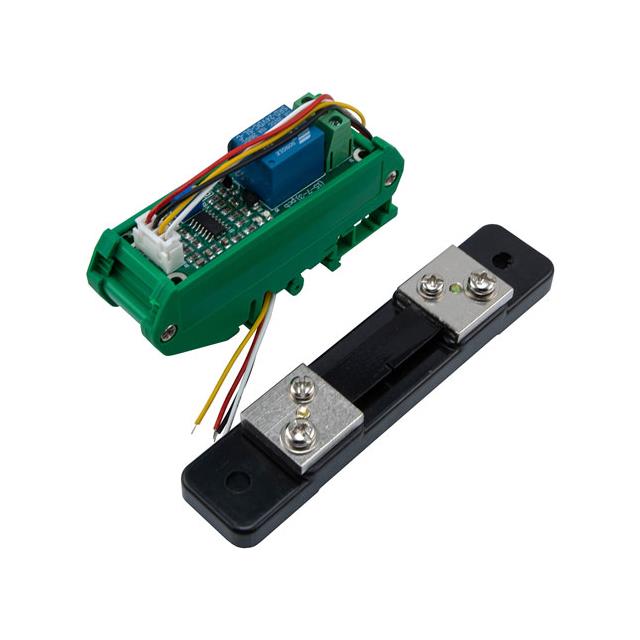

SRCN-C412-3
ActivePasternack
ISOLATED AC CURRENT SHUNT CURREN
SRCN-C412-3
ActivePasternack
ISOLATED AC CURRENT SHUNT CURREN
Description
General part information
SRCN-C412-3
Current Sensing DC 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | SRCN-C412-3 |
|---|---|
| Circuit | DPST-NO/NC (1 Form A and B) |
| Delay Time (Maximum) | 0.5 s |
| Delay Time (Minimum) | 0.3 Sec |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | 0 °C |
| Output Type | Relay |
| Trip Current (Max) | 50 A |
| Trip Current (Min) | 0 A |
| Trip Status | Low, Energized High |
| Type | Current Sensing AC, Current Sensing DC |
| Voltage - Supply | 24 VDC |
