Description
General part information

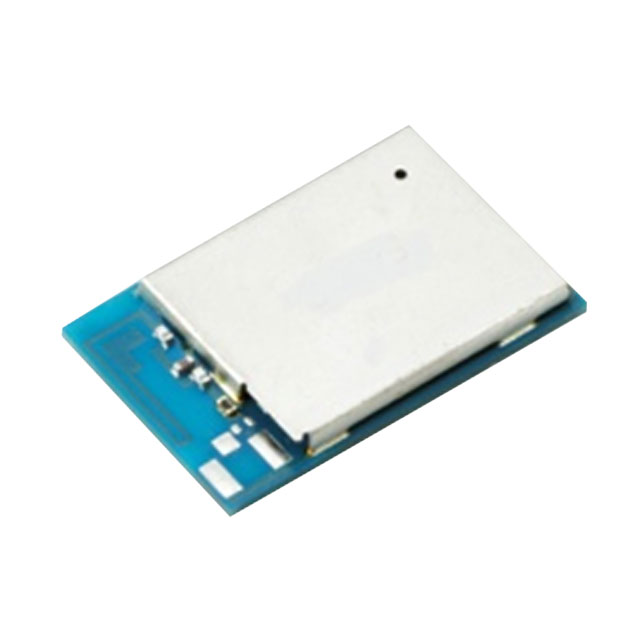

WYSACVLAY-XZ
WiFi 802.11b/g/n Transceiver Module 2.412GHz ~ 2.462GHz Integrated, Trace Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | WYSACVLAY-XZ |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 82 mA |
| Current - Transmitting | 165 mA |
| Data Rate | 115.2 kbps |
| Frequency (Max) | 2.462 GHz |
| Frequency (Min) | 2.412 GHz |
| Memory Size (SRAM) | 512 kB |
| Memory Type | SRAM |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 44-SMD Module |
| Power - Output | 15 dBm |
| Protocol | 802.11n, 802.11b, 802.11g |
| RF Family/Standard | WiFi |
| Sensitivity | -86 dBm |
| Serial Interfaces | UART, I2C, SPI |
| Utilized IC / Part | MW320 |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 3 V |
