MAL212383331E3
ObsoleteVishay Dale

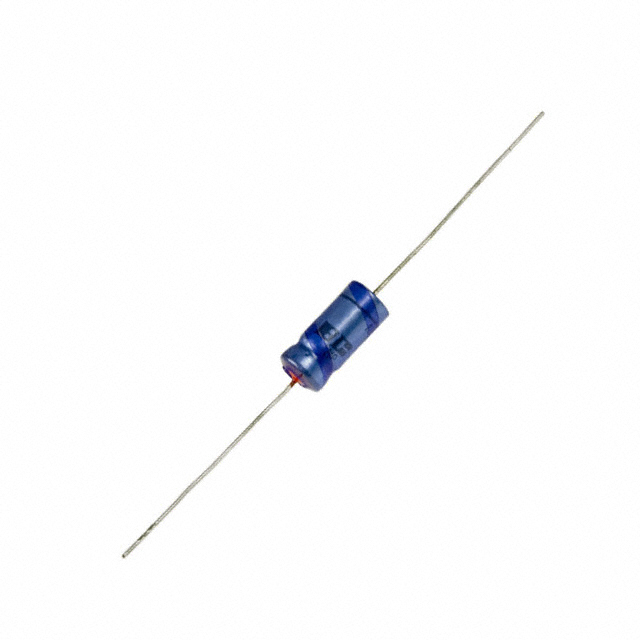

CAP ALUM 330UF 20% 6.3V AXIAL TH
MAL212383331E3
ObsoleteVishay Dale
CAP ALUM 330UF 20% 6.3V AXIAL TH
Description
General part information
MAL212383331E3
330 µF 6.3 V Aluminum Electrolytic Capacitors Axial, Can 1.1Ohm @ 100Hz 20000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL212383331E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 330 µF |
| ESR (Equivalent Series Resistance) | 1.1 Ohm |
| Impedance | 400 mOhms |
| Lifetime | 20000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 330 mA |
| Size / Dimension Diameter | 0.37 in |
| Size / Dimension Length | 0.917 in |
| Tolerance | 20 % |
| Voltage - Rated | 6.3 V |
