2005252-1
ActiveTE Connectivity AMP Connectors

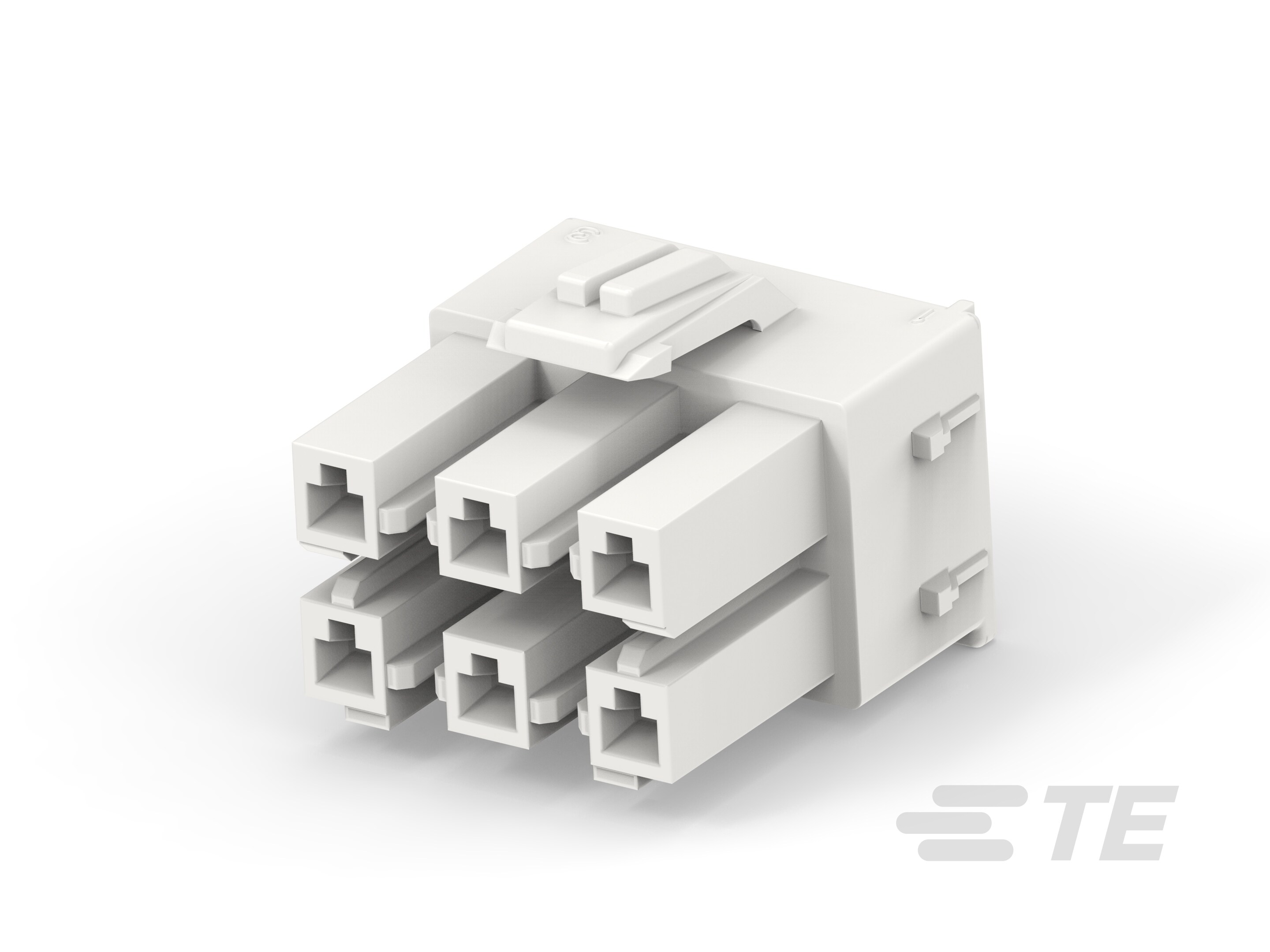

CONN HOUSING PL 6 POS 6.5MM CRIMP ST CABLE MOUNT NATURAL BAG
2005252-1
ActiveTE Connectivity AMP Connectors
CONN HOUSING PL 6 POS 6.5MM CRIMP ST CABLE MOUNT NATURAL BAG
Description
General part information
2005252-1
6 Position, Plug, Housing, Crimp, Wire-to-Wire, UL 94V-0, 6.5 mm [.255 in] Centerline, 2 Row, 300 VAC, Wire & Cable, Power & Signal, Power Double Lock
Technical Specifications
Parameters and characteristics for this part
| Specification | 2005252-1 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Sealed, Double Lock Plate |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.256 in |
| Row Spacing | 0.256 in |
