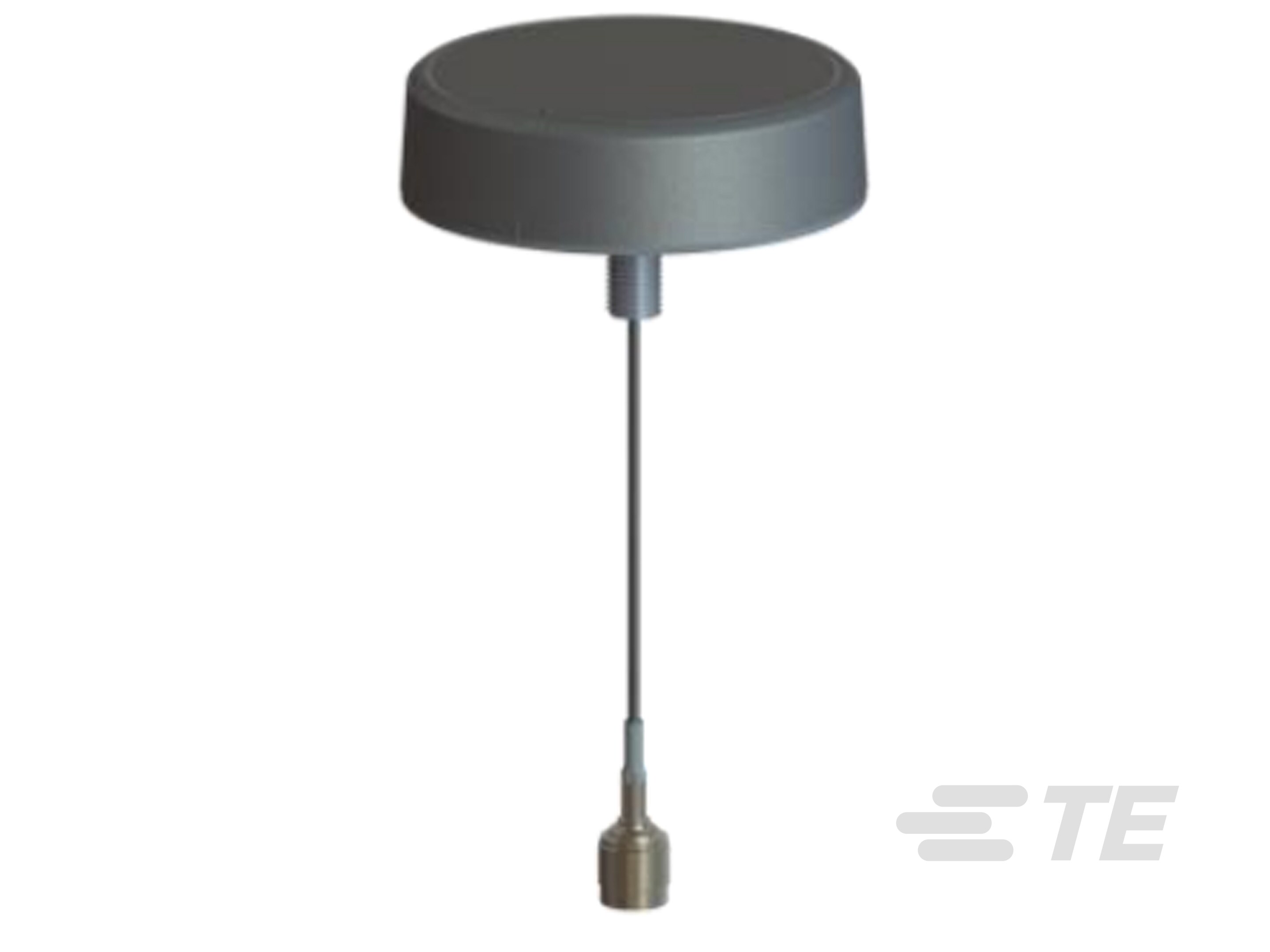

Specification	LPS69863NT-61SMAM

Antenna Type	Puck
Applications	3G/4G, Wi-Fi, LTE
Features	610mm, Cable
Frequency (Center/Band)	859MHz, 2.6GHz, 920MHz, 752MHz, 1.785GHz, 2.045GHz, 2.4GHz, 1.92GHz
Frequency (Center/Band) - 1	752 MHz
Frequency (Center/Band) - 2	859 MHz
Frequency (Center/Band) - 3	920 MHz
Frequency (Center/Band) - 4	1.785 GHz
Frequency (Center/Band) - 5	1.92 GHz
Frequency (Center/Band) - 6	2.045 GHz
Frequency (Center/Band) - 7	2.4 GHz
Frequency (Center/Band) - 8	2.6 GHz
Frequency Group	Wide Band
Frequency Range (Band 1) Maximum	806 MHz
Frequency Range (Band 1) Minimum	698 MHz
Frequency Range (Band 2) Maximum	894 MHz
Frequency Range (Band 2) Minimum	824 MHz
Frequency Range (Band 3) Maximum	960 MHz
Frequency Range (Band 3) Minimum	880 MHz
Frequency Range (Band 4) Maximum	1.88 GHz
Frequency Range (Band 4) Minimum	1.69 GHz
Frequency Range (Band 5) Maximum	1.99 GHz
Frequency Range (Band 5) Minimum	1.85 GHz
Frequency Range (Band 6) Maximum	2.18 GHz
Frequency Range (Band 6) Minimum	1.91 GHz
Frequency Range (Band 7) Maximum	2.5 GHz
Frequency Range (Band 7) Minimum	2.3 GHz
Frequency Range (Band 8) Maximum	2.7 GHz
Frequency Range (Band 8) Minimum	2.5 GHz
Gain	4.3 dBi, 3.9 dBi, 4.7 dBi, 5.1 dBi, 3.3 dBi, 3.4 dBi, 3.8 dBi, 5.3 dBi
Height (Max)	1.142 in
Ingress Protection	IP67
Mounting Type	Stud
Number of Bands	8
Power - Max	10 VA
RF Family/Standard	WiFi, Cellular
Termination Type	SMA Male
VSWR	3
