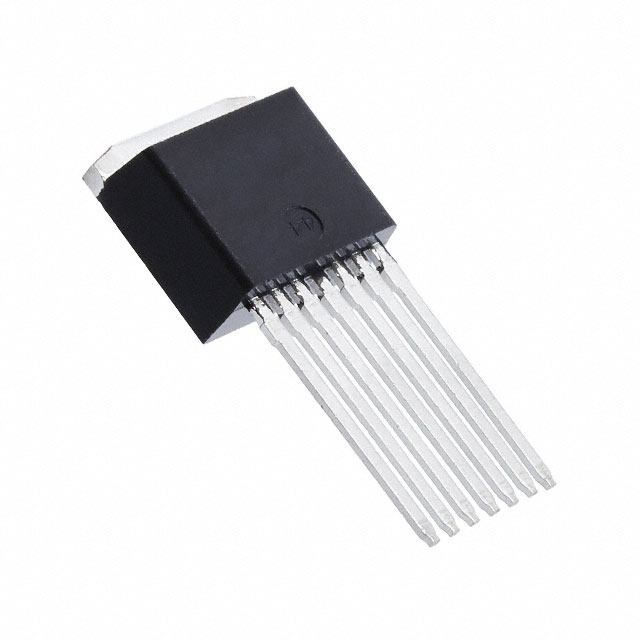

IRF1405ZL-7PPBF
N-Channel 55 V 120A (Tc) 230W (Tc) Through Hole TO-263CA-7
Technical Specifications
Parameters and characteristics for this part
| Specification | IRF1405ZL-7PPBF |
|---|---|
| Current - Continuous Drain (Id) (Tc) | 120 A |
| Drain to Source Voltage (Vdss) | 55 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Max) | 230 nC |
| Input Capacitance (Ciss) (Max) | 5360 pF |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TO-263-7 (Straight Leads) |
| Package Name | TO-263CA-7 |
| Power Dissipation (Max) | 230 W |
| Rds On (Max) | 4.9 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) | 4 V |
