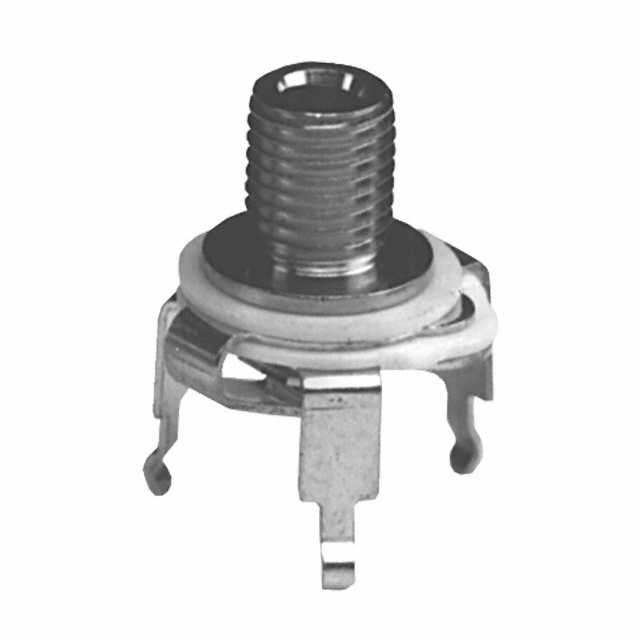

TR1PC
2.46mm ID (0.097") Phone Jack Mono Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | TR1PC |
|---|---|
| Actual Diameter | 0.1 in |
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Phone Jack |
| Contact Material | Nickel Silver Alloy |
| Contact Material - Plating | Tin |
| Features | Mounting Hardware, Thread Lock |
| Gender | Female |
| Includes | Washer, Connector, Nut |
| Includes Total Count | 3 pcs |
| Industry Recognized Mating Diameter (ID) | 2.46 mm |
| Internal Switch(s) | Single Switch |
| Mounting Type | Panel Mount, Through Hole |
| Number of Conductors | 2 |
| Number of Contacts | 3 |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -20 °C |
| Panel Hole Size | 0.19 in |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
| Thread Size (Max) | 48 mm |
| Thread Size (Min) | 10 mm |
