ActiveMULTIPAIR CABLE, XTRA-GUARD® 2, SHIELDED, 4 PAIR, 22 AWG, 0.35 MM², 100 FT, 30.5 M
Deep-Dive with AI
Search across all available documentation for this part.
25124 BK005
ActiveMULTIPAIR CABLE, XTRA-GUARD® 2, SHIELDED, 4 PAIR, 22 AWG, 0.35 MM², 100 FT, 30.5 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 25124 BK005 | 25124 Series |
|---|---|---|
| Cable Type | Multi-Pair | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 7 | 7 |
| Conductor Strand [custom] | 30 AWG | 30 AWG |
| Features | Rip Cord, Biological Compatibility, Drain Wire | Rip Cord, Biological Compatibility, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.295 in | 0.295 in |
| Jacket (Insulation) Diameter [diameter] | 7.49 mm | 7.49 mm |
| Jacket (Insulation) Material | Polyurethane (PU) | Polyurethane (PU) |
| Jacket Color | Black | Green, Black, Slate |
| Length | - | 1000 ft |
| Length | - | 304.8 m |
| Length [x] | 30.5 m | 30.5 m |
| Length [x] | 100 ft | 100 ft |
| Number of Conductors | 8 | 8 |
| Operating Temperature [Max] | 90 °C | 90 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Ratings | UL Style 20668, ISO 10993 | UL Style 20668, ISO 10993 |
| Shield Coverage | 70 %, 100 % | 70 - 100 % |
| Shield Material | Copper, Tinned, Suprashield® | Copper, Tinned, Suprashield® |
| Shield Type | Foil, Braid | Foil, Braid |
| Voltage | 300 V | 300 V |
| Wire Gauge | 22 AWG | 22 AWG |
25124 Series
MULTI-PAIR 8COND 22AWG GRN 1000'
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Voltage | Jacket Color | Shield Material | Jacket (Insulation) Material | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Ratings | Shield Coverage | Conductor Insulation | Shield Type | Cable Type | Conductor Material | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 25124 GR199 | 7 | 30 AWG | 22 AWG | 300 V | Green | Copper, Tinned, Suprashield® | Polyurethane (PU) | Biological Compatibility, Drain Wire, Rip Cord | 0.295 in | 7.49 mm | -30 ░C | 90 °C | 8 | ISO 10993, UL Style 20668 | 70 %, 100 % | Poly-Vinyl Chloride (PVC) | Braid, Foil | Multi-Pair | Copper, Tinned | 1000 ft | 304.8 m | ||
ALPHA WIRE 25124 BK005 | 7 | 30 AWG | 22 AWG | 300 V | Black | Copper, Tinned, Suprashield® | Polyurethane (PU) | Biological Compatibility, Drain Wire, Rip Cord | 0.295 in | 7.49 mm | -30 ░C | 90 °C | 8 | ISO 10993, UL Style 20668 | 70 %, 100 % | Poly-Vinyl Chloride (PVC) | Braid, Foil | Multi-Pair | Copper, Tinned | 30.5 m | 100 ft | ||
ALPHA WIRE 25124 SL199 | 7 | 30 AWG | 22 AWG | 300 V | Slate | Copper, Tinned, Suprashield® | Polyurethane (PU) | Biological Compatibility, Drain Wire, Rip Cord | 0.295 in | 7.49 mm | -30 ░C | 90 °C | 8 | ISO 10993, UL Style 20668 | 70 %, 100 % | Poly-Vinyl Chloride (PVC) | Braid, Foil | Multi-Pair | Copper, Tinned | 1000 ft | 304.8 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
25124 Series

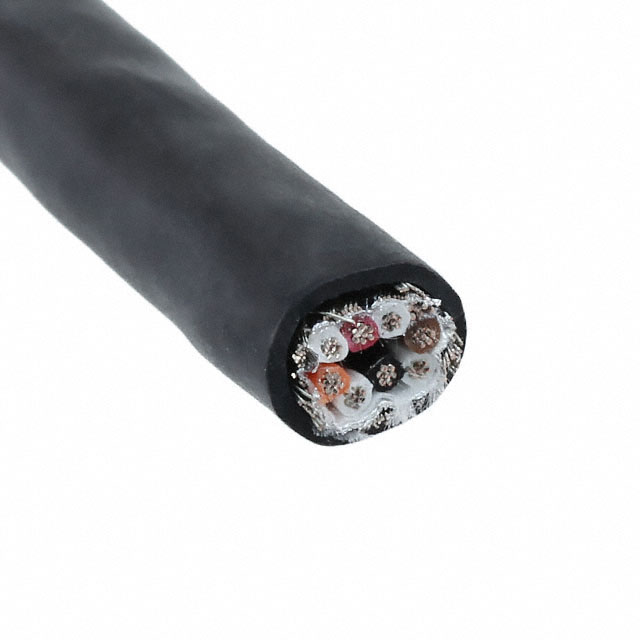

The 25124 BK005 from Alpha Wire is an Xtra-Guard® 2 oil and abrasion resistant 300V Supra-Shield® Foil + Braid multipair cable for use in industrial applications where abrasion and mechanical abuse is common. Xtra-Guard® 2 cable brings high performance and reliability to the biggest challenges in the toughest environments. Its specially formulated, rugged polyurethane jacket offers three times the tear and abrasion resistance of ordinary PVC. This Supra-Shield® Foil + Braid cable uses a sturdy aluminium/polyester/aluminium tape shield plus a tinned copper braid for exceptional EMI performance. A tinned copper drain wire makes grounding the cable easy. Nylon ripcord for easy jacket stripping. Its round construction makes it easier to install, seal and route.
