TC7135CLI713
ActiveMicrochip Technology
IC DRVR 7 SEG 4 1/2 DIGIT 28PLCC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC7135CLI713
ActiveMicrochip Technology
IC DRVR 7 SEG 4 1/2 DIGIT 28PLCC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TC7135CLI713 | TC7135 Series |
|---|---|---|
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 28-LCC (J-Lead) | 28-LCC (J-Lead), 28-DIP, 64-BQFP |
| Package / Case | - | 0.6 in |
| Package / Case | - | 15.24 mm |
| Supplier Device Package | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51), 28-PDIP, 64-MQFP (14x14) |
| Voltage - Supply [Max] | 6 V | 6 V |
| Voltage - Supply [Min] | 4 V | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TC7135 Series
IC DRVR 7 SEG 4 1/2 DIGIT 28PLCC
| Part | Package / Case | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|
Microchip Technology TC7135CLI | 28-LCC (J-Lead) | 28-PLCC (11.51x11.51) | 70 °C | 0 °C | 6 V | 4 V | Surface Mount | ||
Microchip Technology TC7135CPI | 28-DIP | 28-PDIP | 70 °C | 0 °C | 6 V | 4 V | Through Hole | 0.6 in | 15.24 mm |
Microchip Technology TC7135CLI713 | 28-LCC (J-Lead) | 28-PLCC (11.51x11.51) | 70 °C | 0 °C | 6 V | 4 V | Surface Mount | ||
Microchip Technology TC7135CBU | 64-BQFP | 64-MQFP (14x14) | 70 °C | 0 °C | 6 V | 4 V | Surface Mount | ||
Microchip Technology TC7135CBU713 | 64-BQFP | 64-MQFP (14x14) | 70 °C | 0 °C | 6 V | 4 V | Surface Mount |
Description
General part information
TC7135 Series

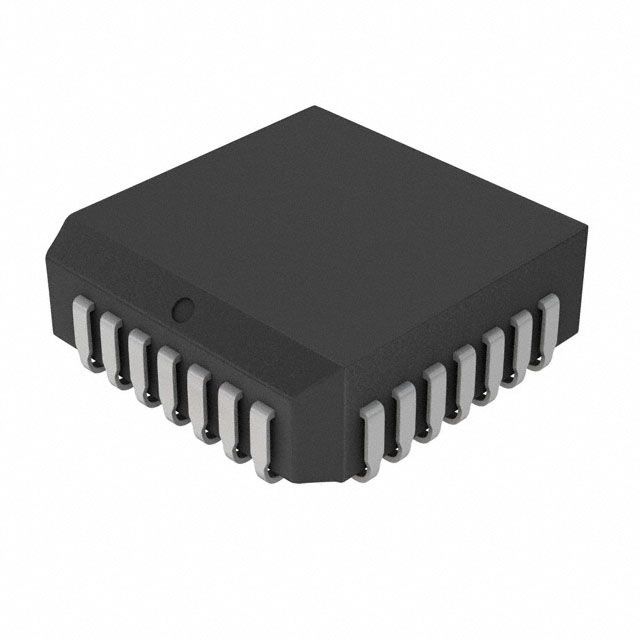

28-PLCC (11.51x11.51)
