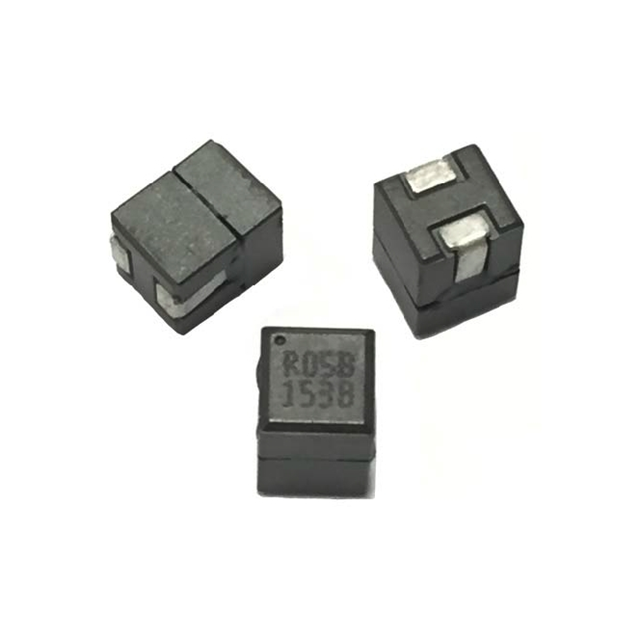

AH2026A-R05LHF
ActiveITG Electronics, Inc.
POWER BEAD 0.05UH 0.27MOHM 70A
AH2026A-R05LHF
ActiveITG Electronics, Inc.
POWER BEAD 0.05UH 0.27MOHM 70A
Description
General part information
AH2026A-R05LHF
50 nH Shielded Inductor 53 A 0.27mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | AH2026A-R05LHF |
|---|---|
| Current Rating | 53 A |
| DC Resistance (DCR) | 0.27 mOhm |
| Height - Seated (Max) | 0.26 in |
| Inductance | 50 nH |
| Inductance Frequency - Test | 500 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.205 in |
| Size / Dimension Width | 0.197 in |
| Tolerance | 15 % |
