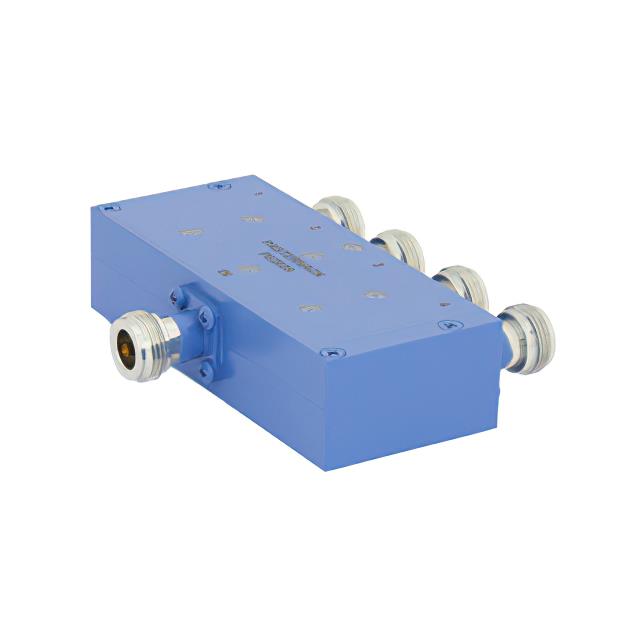

PE2039
ActivePasternack
4 WAY N POWER DIVIDER FROM 1 GHZ
PE2039
ActivePasternack
4 WAY N POWER DIVIDER FROM 1 GHZ
Description
General part information
PE2039
RF Power Divider 1 GHz ~ 2 GHz Isolation (Min) 20dB, 3° Imbalance (Max), 2 VSWR (Max) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE2039 |
|---|---|
| Frequency (Max) | 2 GHz |
| Frequency (Min) | 1 GHz |
| Imbalance (Max) | 3 ° |
| Insertion Loss | 2.25 dB |
| Isolation (Min) | 20 dB |
| Package / Case | Module |
| Size / Dimension Height | 1.02 in |
| Size / Dimension Length | 4 in |
| Size / Dimension Width | 1.756 in |
| VSWR (Max) | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
