Description
General part information
DC2746A

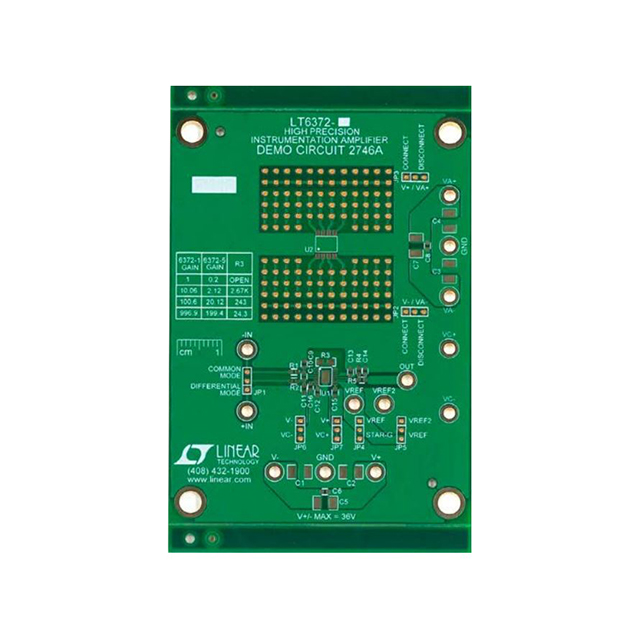

LT6372-1, LT6372-0.2 1 - Single Channels per IC Instrumentation Amplifier Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | DC2746A |
|---|---|
| Amplifier Type | Instrumentation |
| Board Type | Bare (Unpopulated) |
| Channels per IC (Count) | 1 |
| Channels per IC (Single) | 1 |
| Channels per IC (Type) | Single |
| Contents | Unpopulated (Bare) Board |
| Output Type | Single-Ended |
| Supplied Contents | Board(s) |
| Utilized IC / Part | LT6372-1, LT6372-0.2 |
