1-1393806-1

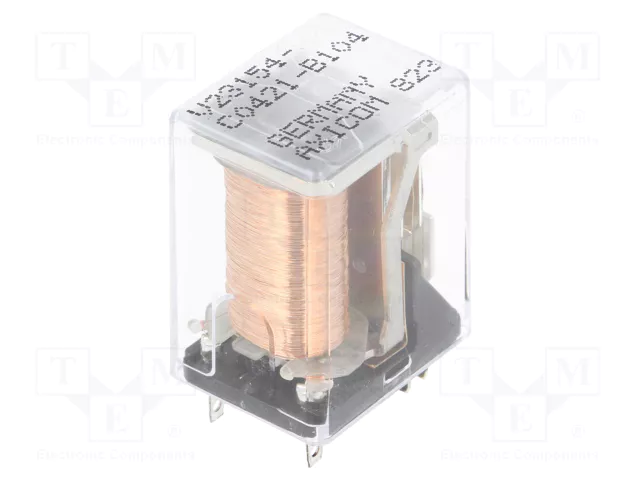

RELAY: ELECTROMAGNETIC; DPDT; UCOIL: 24VDC; 2A; CRADLE N; MINIATURE
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1393806-1 |
|---|---|
| Coil Current | 34.3 mA |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | Form, 2 Form C, C, 2, DPDT |
| Contact Material | Gold (Au), Silver (Ag) |
| Contact Rating (Current) | 2 A |
| Load - Max Switching (Apparent Power) | 250 VA |
| Load - Max Switching (Real Power) | 300 W |
| Mounting Type | Socketable |
| Must Operate Voltage | 11.2 VDC |
| Operate Time | 7.5 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Relay Type | General Purpose |
| Release Time | 3 ms |
| Switching Voltage AC (Max) | 125 VAC |
| Switching Voltage DC (Max) | 150 VDC |
| Termination Style | Plug In |
