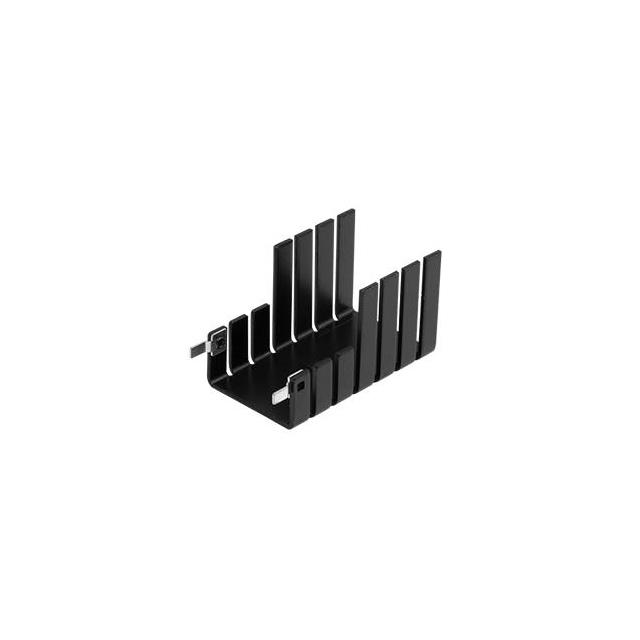

HSS25-B20-P51
ActiveSame Sky (Formerly CUI Devices)
HEAT SINK, STAMPING, TO-218/TO-2
HSS25-B20-P51
ActiveSame Sky (Formerly CUI Devices)
HEAT SINK, STAMPING, TO-218/TO-2
Description
General part information
HSS25-B20-P51
Heat Sink TO-218, TO-220 Aluminum Alloy 5.88W @ 75°C Board Level
Technical Specifications
Parameters and characteristics for this part
| Specification | HSS25-B20-P51 |
|---|---|
| Attachment Method | PC Pin |
| Fin Height | 1.673 in |
| Length | 25.4 mm |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | TO-220, TO-218 |
| Power Dissipation | 5.88 W |
| Shape | Square, Fins |
| Thermal Resistance | 12.75 °C/W, 6.3 °C/W |
| Type | Board Level |
| Width | 1 in |
