Description
General part information
UC-00PFFH-QF7002

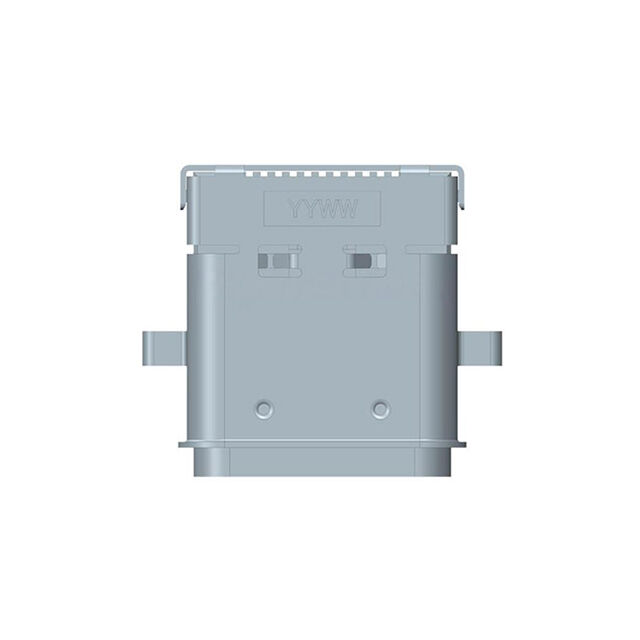

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | UC-00PFFH-QF7002 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating | 3 A |
| Gender | Receptacle |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Board Edge, Through Hole, Right Angle, Surface Mount, Cutout |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shell/Shielding Material | Steel, Stainless |
| Shielding | Shielded |
| Specifications | Superspeed + (USB 3.1), USB 3.2 Gen 2 (USB 3.1 Gen 2 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
