7093-0279
ActiveMcGill Microwave Systems
CBL ASSY BMZ-MCX JACK-PLUG 12"
7093-0279
ActiveMcGill Microwave Systems
CBL ASSY BMZ-MCX JACK-PLUG 12"
Description
General part information
7093-0279

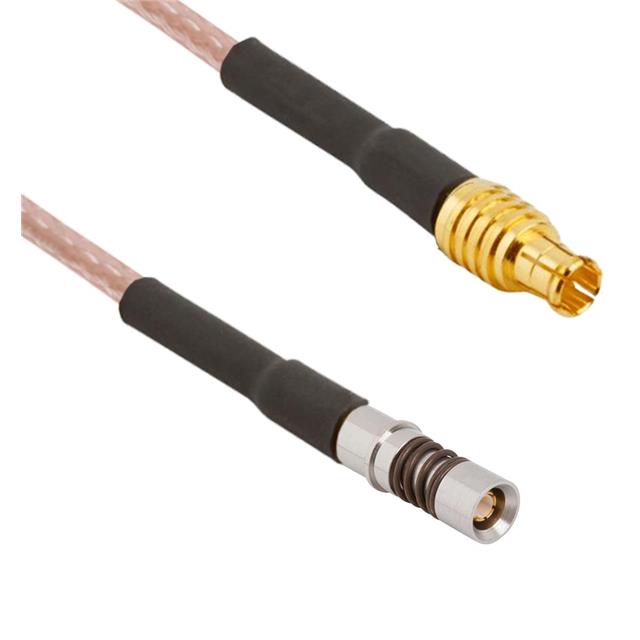

Cable Assembly Coaxial BMZ to MCX RG-179 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 7093-0279 |
|---|---|
| 1st Connector | BMZ Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | MCX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Type | RG, 179 |
| Color | Copper |
| Frequency - Max | 3 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 75 Ohms |
| Style | BMZ, MCX |
