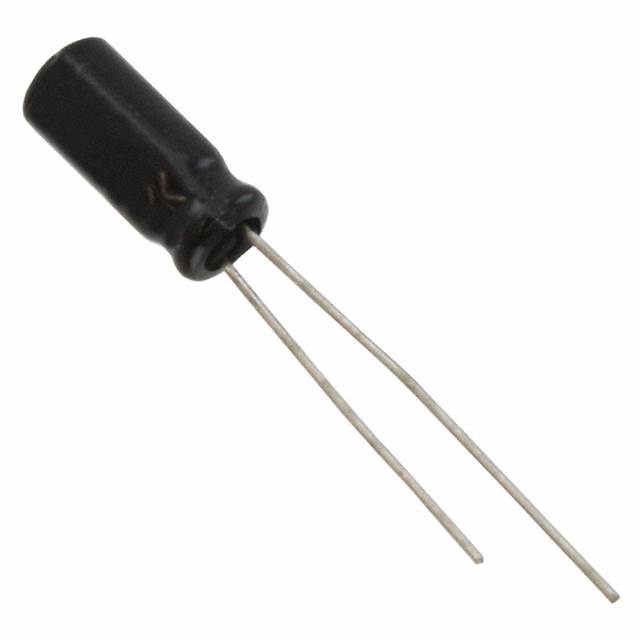

Specification	UVP1H010MDD

Applications	General Purpose
Capacitance	1 µF
Height - Seated (Max)	0.433 in
Lead Spacing	0.079 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Polarization	Bi-Polar
Ripple Current	34 mA, 17 mA
Size / Dimension Diameter	0.197 in
Tolerance	20 %
Voltage - Rated	50 V

UVP Series

Part	Lifetime	Applications	Capacitance	Polarization	Size / Dimension Diameter	Mounting Type	Height - Seated (Max)	Package / Case	Lead Spacing	Ripple Current	Operating Temperature (Min)	Operating Temperature (Max)	Tolerance	Voltage - Rated
Nichicon UVP1C100MDD	2000 Hrs	General Purpose	10 µF	Bi-Polar	0.197 in	Through Hole	0.433 in	Can Radial	0.079 in	42 mA	-40 °C	85 °C	20 %	16 V
Nichicon UVP1J3R3MDD	2000 Hrs	General Purpose	3.3 µF	Bi-Polar	0.197 in	Through Hole	0.492 in	Can Radial	0.079 in	28 mA 56 mA	-40 °C	85 °C	20 %	63 V
Nichicon UVP1E102MHD1TN	2000 Hrs	General Purpose	1000 µF	Bi-Polar	0.63 in	Through Hole	1.063 in	Can Radial	0.295 in	1.0925 A 950 mA	-40 °C	85 °C	20 %	25 VAC
Nichicon UVP1C100MDD1TD	2000 Hrs	General Purpose	10 µF	Bi-Polar	0.197 in	Through Hole	0.492 in	Can Radial	0.098 in	42 mA	-40 °C	85 °C	20 %	16 V
Nichicon UVP0J471MPD	2000 Hrs	General Purpose	470 µF	Bi-Polar	0.394 in	Through Hole	0.551 in	Can Radial	0.197 in	370 mA 555 mA	-40 °C	85 °C	20 %	6.3 V
Nichicon UVP0J222MHD1TO	2000 Hrs	General Purpose	2200 ĄF	Bi-Polar	0.492 in	Through Hole	1.063 in	Can Radial	0.197 in	1.16 A 1.334 A	-40 °C	85 °C	20 %	6.3 V
Nichicon UVP1J100MED1TA	2000 Hrs	General Purpose	10 µF	Bi-Polar	0.248 in	Through Hole	0.492 in	Can Radial	0.098 in	57 mA 114 mA	-40 °C	85 °C	20 %	63 V
Nichicon UVP1A221MPD1TD	2000 Hrs	General Purpose	220 µF	Bi-Polar	0.315 in	Through Hole	0.512 in	Can Radial	0.138 in	215 mA 322.5 mA	-40 °C	85 °C	20 %	10 V
Nichicon UVP1E221MPD1CV	2000 Hrs	General Purpose	220 µF	Bi-Polar	0.394 in	Through Hole	0.689 in	Can Radial	0.197 in	305 mA 457.5 mA	-40 °C	85 °C	20 %	25 VAC
Nichicon UVP1C101MPD1TA	2000 Hrs	General Purpose	100 µF	Bi-Polar	0.315 in	Through Hole	0.512 in	Can Radial	0.138 in	160 mA 240 mA	-40 °C	85 °C	20 %	16 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Miniature Type Taping Spec
