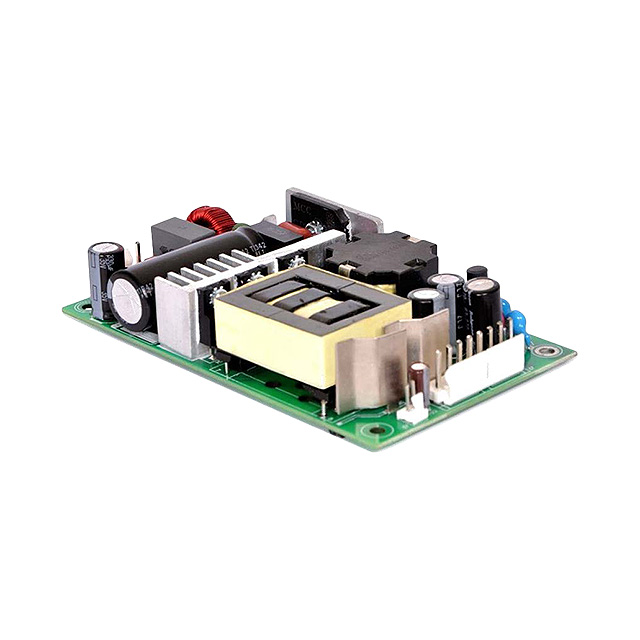

ABC350-1048L
ActiveBel Power Solutions
AC/DC CONVERTER 48V 200/350W
Deep-Dive with AI
Search across all available documentation for this part.
ABC350-1048L
ActiveBel Power Solutions
AC/DC CONVERTER 48V 200/350W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ABC350-1048L | ABC350 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | CE | CE |
| Current - Output 1 | 4.17 A | 4.17 - 15 A |
| Efficiency | 94 % | 92 - 94 % |
| Features | DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output | DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output |
| Minimum Load Required | False | False |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Outputs | 1 | 1 |
| Power (Watts) | 350 W | 350 W |
| Power (Watts) | 200 W | 160 - 200 W |
| Power (Watts) | - | 275 W |
| Size / Dimension [x] | 5 in | 5 in |
| Size / Dimension [x] | 127 mm | 127 mm |
| Size / Dimension [y] | 3 " | 3 " |
| Size / Dimension [y] | 76.2 mm | 76.2 mm |
| Size / Dimension [z] | 1 " | 1 " |
| Size / Dimension [z] | 25.4 mm | 25.4 mm |
| Type | Open Frame | Open Frame |
| Voltage - Input | - | 90 VAC |
| Voltage - Input | - | 264 VAC |
| Voltage - Isolation | 3000 V | 3000 V |
| Voltage - Output 1 | 48 V | 12 - 48 V |
ABC350 Series
AC/DC CONVERTER 12V 200/350W
| Part | Number of Outputs | Mounting Type | Applications | Type | Minimum Load Required | Features | Current - Output 1 | Voltage - Output 1 | Power (Watts) | Power (Watts) | Approval Agency | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Efficiency | Voltage - Isolation | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bel Power Solutions ABC350-1T12L | 1 | Chassis Mount | ITE (Commercial) | Open Frame | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | 15 A | 12 V | 350 W | 200 W | CE | 1 " | 25.4 mm | 3 " | 5 in | 127 mm | 76.2 mm | 92 % | 3000 V | ||||
Bel Power Solutions ABC350-1048L | 1 | Chassis Mount | ITE (Commercial) | Open Frame | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | 4.17 A | 48 V | 350 W | 200 W | CE | 1 " | 25.4 mm | 3 " | 5 in | 127 mm | 76.2 mm | 94 % | 3000 V | ||||
Bel Power Solutions ABC350-1012L | 1 | Chassis Mount | ITE (Commercial) | Open Frame | DC Input Capable, PFC, Standby Output, Universal Input | 15 A | 12 V | 350 W | 200 W | CE | 1 " | 25.4 mm | 3 " | 5 in | 127 mm | 76.2 mm | 94 % | 3000 V | ||||
Bel Power Solutions ABC350-1T48L | 1 | Chassis Mount | ITE (Commercial) | Open Frame | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | 4.17 A | 48 V | 350 W | 200 W | CE | 1 " | 25.4 mm | 3 " | 5 in | 127 mm | 76.2 mm | 94 % | 3000 V | ||||
Bel Power Solutions ABC350-1024L | 1 | Chassis Mount | ITE (Commercial) | Open Frame | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | 8.333 A | 24 V | 350 W | 200 W | CE | 1 " | 25.4 mm | 3 " | 5 in | 127 mm | 76.2 mm | 94 % | 3000 V | ||||
Bel Power Solutions ABC350-1T15L | 1 | Chassis Mount | ITE (Commercial) | Open Frame | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | 12 A | 15 V | 160 W | CE | 1 " | 25.4 mm | 3 " | 5 in | 127 mm | 76.2 mm | 92 % | 3000 V | 90 VAC | 264 VAC | 275 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ABC350 Series
Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
