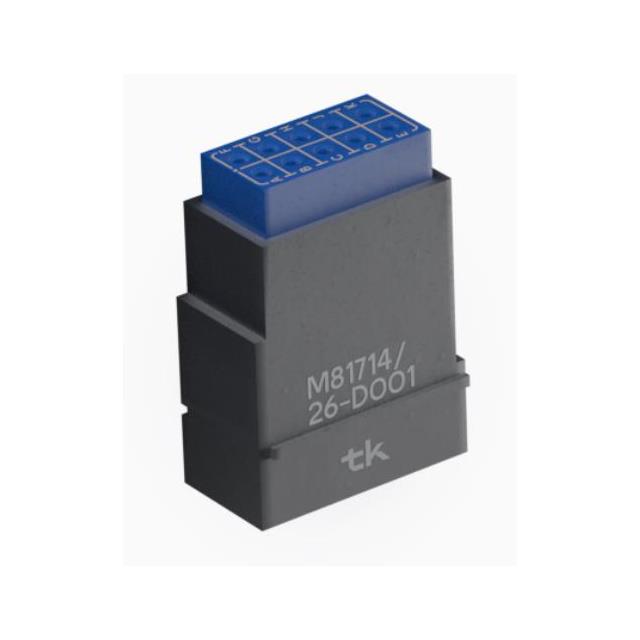

M81714/26-D001
ActiveDME INTERCONNECT
CONN DIODE MOD SZ20 0.855" L X 0
M81714/26-D001
ActiveDME INTERCONNECT
CONN DIODE MOD SZ20 0.855" L X 0
Description
General part information
M81714/26-D001
Connector Module Contact Size 20
Technical Specifications
Parameters and characteristics for this part
| Specification | M81714/26-D001 |
|---|---|
| Contact Size | 20 |
| Grade | Military |
| Module Capacity | 10 |
| Qualification | MIL-T-81714 |
| Size / Dimension Height | 1.31 in |
| Size / Dimension Length | 0.855 in |
| Size / Dimension Width | 0.395 in |
| Type | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
