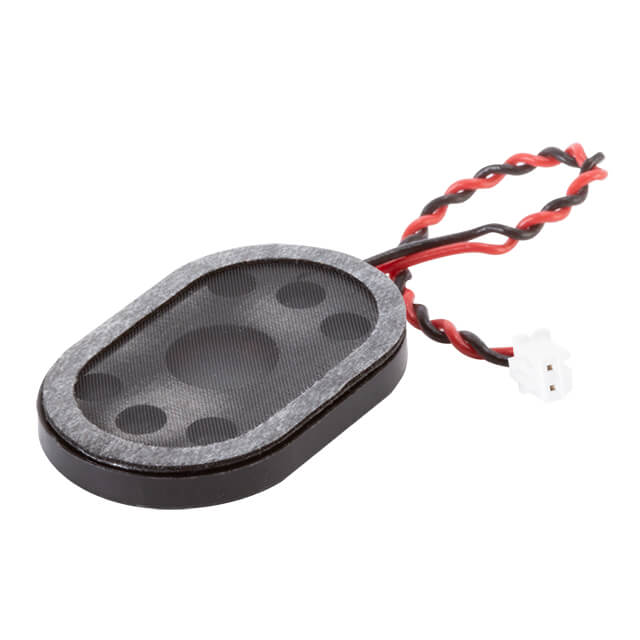

CMS-30204-18L250
ActiveSame Sky (Formerly CUI Devices)
SPEAKERS & TRANSDUCERS 30X20MM OVAL, 1W, 8OHM, 700HZ
CMS-30204-18L250
ActiveSame Sky (Formerly CUI Devices)
SPEAKERS & TRANSDUCERS 30X20MM OVAL, 1W, 8OHM, 700HZ
Description
General part information
CMS-30204-18L250
8 Ohms General Purpose Speaker 1 W 560 Hz ~ 10 kHz Top Oval, Rectangular Frame
Technical Specifications
Parameters and characteristics for this part
| Specification | CMS-30204-18L250 |
|---|---|
| Distortion Rating (Max) | 15 % |
| Distortion Rating Power | 1 W |
| Efficiency - dBA | 94 dBA |
| Efficiency - Testing Length | 100 mm |
| Efficiency - Testing Power | 1 W |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 700 Hz |
| Frequency Range (Max) | 10 kHz |
| Frequency Range (Min) | 560 Hz |
| Height - Seated (Max) | 0.157 in |
| Impedance | 8 Ohm |
| Material - Cone | Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -25 °C |
| Port Location | Top |
| Power - Max | 1.2 VA |
| Power - Rated | 1 VA |
| Shape | Oval, Rectangular Frame |
| Size / Dimension Length | 1.181 in |
| Size / Dimension Width | 0.787 in |
| Technology | Magnetic |
| Termination | Wire Leads |
| Type | General Purpose |
