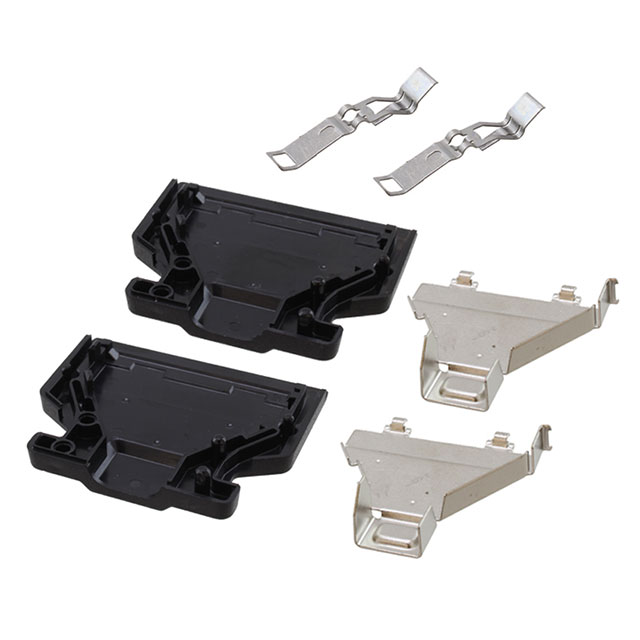

Specification	787229-1

Accessory Type	Two Piece Backshell and Cover
Cable Exit Angle	180 °
Cable Type	Round
Color	Black
Features	Spring Lock
Material	Steel, Plastic Cover, Metal Shell
Number of Positions	68
Primary Material	Metal
Shielding	Shielded

CHAMP .8 mm Connector Series

Part	Length - Below Head	For Use With/Related Products	Thread Size	Accessory Type	Contact Finish Thickness	Flange Feature	Number of Positions	Number of Positions	Number of Rows	Connector Receptacles	Connector Type	Mounting Type	Connector Style	Features	Contact Finish	Termination	Cable Type	Primary Material	Cable Exit Angle	Color	Shielding	Material	Plating	Connector Plug Count	Hardware
TE Connectivity AMP Connectors 787003-3	0.236 in	CHAMP D-Sub Connectors	M2	Locking Post
TE Connectivity AMP Connectors 5787962-2					30 µin	Housing Shell (M2.6)	68	68	2	2	2 Receptacles Stacked	Panel Mount Right Angle Through Hole	Outer Shroud Contacts	Board Lock	Gold	Solder
TE Connectivity AMP Connectors 5787233-1				Two Piece Backshell and Cover			50							Mating Screws			Round	Metal	180 °	Black	Shielded	Metal Shell Plastic Cover Steel
TE Connectivity AMP Connectors 6658751-1					30 µin	Housing Shell (M2.6)	50		2		Receptacle	Panel Mount Right Angle Through Hole	Outer Shroud Contacts	Board Lock Shielded	Gold	Solder
TE Connectivity AMP Connectors 6364306-1					30 µin	Housing Shell (M2.6)	68	68	2	2	2 Receptacles Stacked	Panel Mount Right Angle Through Hole	Outer Shroud Contacts	Board Lock	Gold	Solder
TE Connectivity AMP Connectors 5796055-1					30 µin	Housing Shell (M2.6)	68		2		Receptacle	Panel Mount Right Angle Through Hole	Outer Shroud Contacts	Board Guide Board Lock Shielded	Gold	Solder
TE Connectivity AMP Connectors 5787191-1				Two Piece Backshell			68							Mating Screws			Round	Metal	180 °	Silver	Shielded	Metal Steel	Nickel over Copper
TE Connectivity AMP Connectors 5796055-4					30 µin	Housing Shell (M2.6)	68		2		Receptacle	Panel Mount Right Angle Through Hole	Outer Shroud Contacts	Board Guide Board Lock Shielded	Gold	Solder
TE Connectivity AMP Connectors 5787775-1					30 µin		68	68	2	2	2 Plugs Plugs Stacked	Free Hanging (In-Line)	Center Strip Contacts	Shielded	Gold	IDC								2
TE Connectivity AMP Connectors 787231-1				Two Piece Backshell and Cover			36							Spring Lock			Round	Metal	180 °	Black	Shielded	Metal Shell Plastic Cover Steel			Strain Relief
