7029-3820
ActiveMcGill Microwave Systems
CBL ASSY SMA PLUG TO PLUG 3"
7029-3820
ActiveMcGill Microwave Systems
CBL ASSY SMA PLUG TO PLUG 3"
Description
General part information
7029-3820

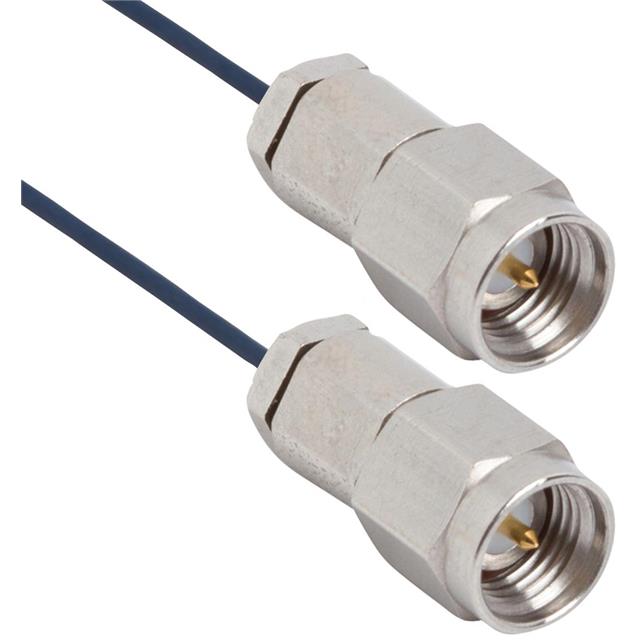

Cable Assembly Coaxial SMA to SMA 0.047" Flexible Cable 3.000" (76.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 7029-3820 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Diameter | 0.047 " |
| Cable Outer Diameter | 0.047 " |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.047, 0.047 " |
| Color | Blue |
| Frequency - Max | 26.5 GHz |
| Length | 3 " |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
