TD4P4HS
ActivePasternack

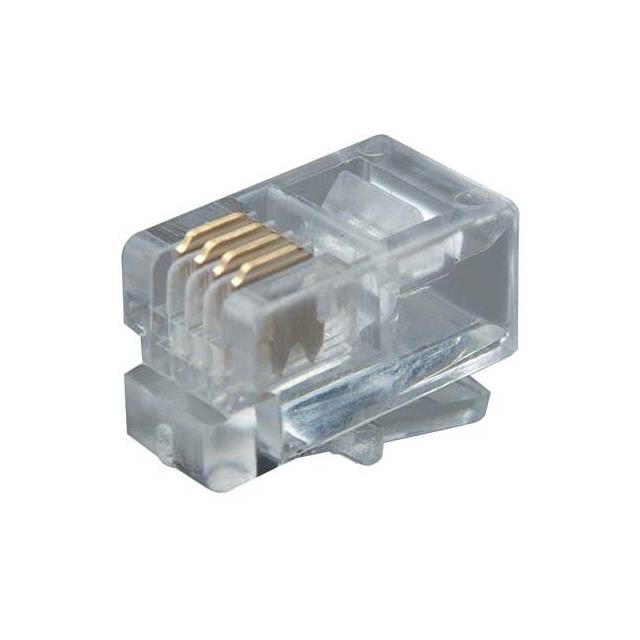

MODULAR CONNECTOR, RJ9 / RJ10 / RJ22 PLUG, 1 X 1 (PORT), 4P4C, CABLE MOUNT
TD4P4HS
ActivePasternack
MODULAR CONNECTOR, RJ9 / RJ10 / RJ22 PLUG, 1 X 1 (PORT), 4P4C, CABLE MOUNT
Description
General part information
TD4P4HS
Plug Modular Connector 4p4c (RJ9, RJ10, RJ22) Position Unshielded IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | TD4P4HS |
|---|---|
| Cable Type | Solid or Stranded Wires, Round Cable |
| Connector Type | Plug, RJ10, RJ22, RJ9 |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Material | Copper Alloy |
| Current Rating | 2 A |
| Housing Material | PC, Polycarbonate |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Shielding | Unshielded |
| Termination | IDC |
| Voltage Rating | 250 V |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
