501
ActiveKeystone Electronics

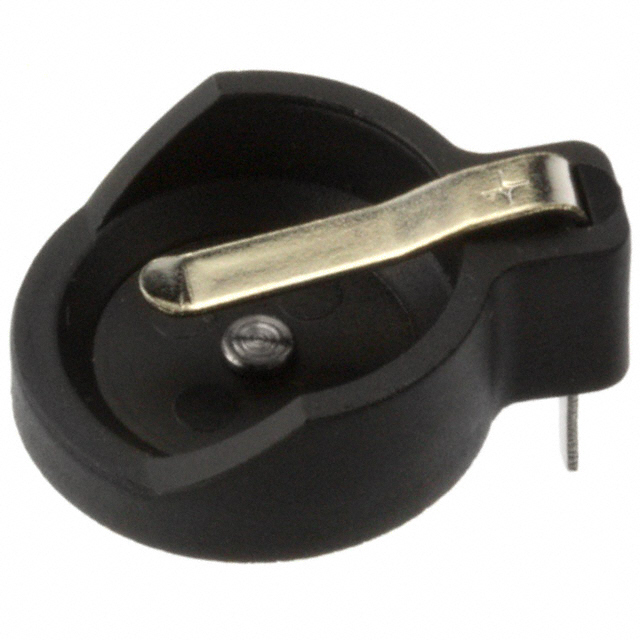

BATT HLD COIN 12MM 2 CELL PC PIN
501
ActiveKeystone Electronics
BATT HLD COIN 12MM 2 CELL PC PIN
Description
General part information
501
Battery Holder (Open) Coin, 12.0mm 2 Cell PC Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | 501 |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size Dimension | 12 mm |
| Battery Series | 1225, 1220, 1216 |
| Battery Type | Coin Cell |
| Function | Holder |
| Height Above Board | 0.28 in |
| Mounting Type | Through Hole, PCB |
| Number of Cells | 2 |
| Operating Temperature (Max) | 145 °C |
| Operating Temperature (Min) | -50 °C |
| Style | Holder (Open) |
| Termination Style | PC Pin |
