5-103956-2

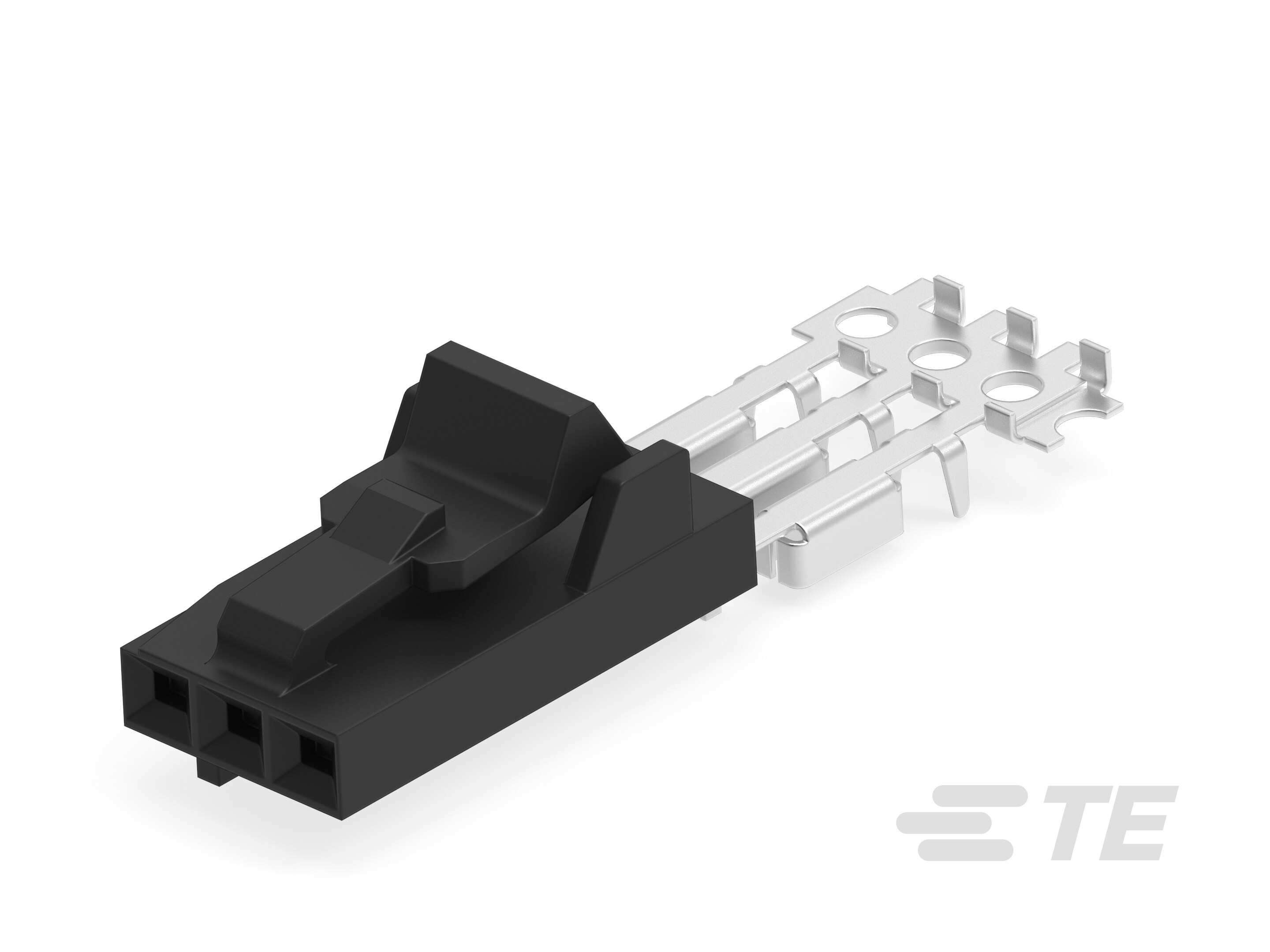

ActiveIDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 1 ROW, 3 CONTACTS, CABLE MOUNT
5-103956-2
ActiveIDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 1 ROW, 3 CONTACTS, CABLE MOUNT
Description
General part information
AMPMODU MTE Series
The AMPMODU MTE series Interconnection System is utilized in wire-to-board and wire-to-wire applications. The product implements insulation displacement contacts (IDC) or crimp snap-in contacts to suit customer's needs. The coupling shrouds permit ganging of smaller receptacle and pin assemblies with guide ribs to form larger single or double row latching connectors.
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-103956-2 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Finish Thickness | 100 µin |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Pitch | 0.1 in |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
| Wire Type | Discrete |
