Description
General part information
ROB-17754

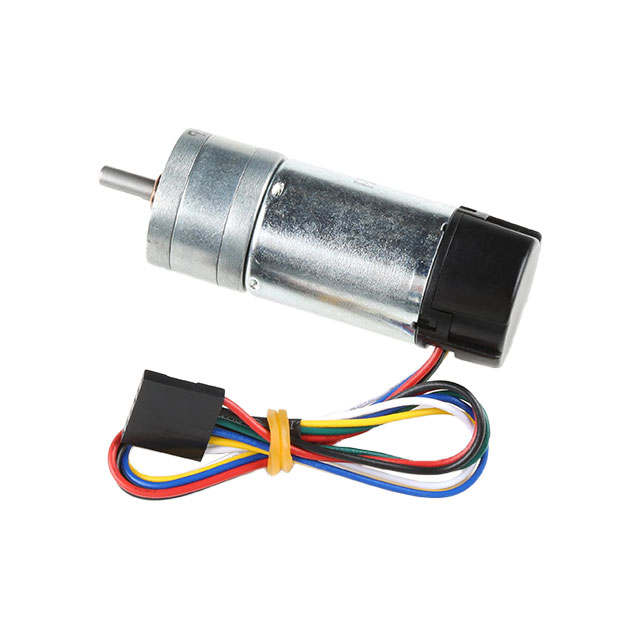

Positional Rotation DC Motor Gearmotor 580 RPM 1.8W 12VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | ROB-17754 |
|---|---|
| Diameter - Shaft | 0.157 in |
| Function | Gearmotor |
| Gear Reduction Ratio | 9.7 |
| Motor Type | Positional Rotation |
| Power - Rated | 1.8 W |
| RPM | 580 RPM |
| Size / Dimension Diameter | 0.984 in |
| Size / Dimension Shape | Round |
| Termination Style | Wire Leads with Connector |
| Torque - Rated (mNm) | 127.1 mNm |
| Torque - Rated (oz-in) | 18 oz-in |
| Type | DC Motor |
| Voltage - Rated | 12 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
