Specification	97-3108B18-1PW-417

Applications	Automotive, Industrial
Backshell Material	Aluminum Alloy
Color	Olive Drab
Connector Type	Male Pins, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Threaded
Features	Coupling Nut
Insert Material	Diallyl Phthalate, DAP
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Positions	10
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	W
Plating	Olive Drab Chromate over Cadmium
Primary Material	Metal
Shell Finish	Olive Drab Chromate, Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert Length	18 mm
Shell Size - Insert Width	1 mm
Shielding	Unshielded
Termination	Solder Cup

97-3108B18 Series

Part	Termination	Orientation	Fastening Type	Connector Type	Mounting Type	Color	Contact Material	Number of Positions	Shielding	Shell Material	Shell Size - Insert Width	Shell Size - Insert Length	Shell Finish	Operating Temperature (Max)	Operating Temperature (Min)	Features	Primary Material	Insert Material	Backshell Material	Plating	Contact Finish - Mating	Applications
Amphenol Aerospace Operations 97-3108B18-4PW-417	Solder Cup	W	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	4	Unshielded	Aluminum Alloy	4 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut	Metal	DAP Diallyl Phthalate	Aluminum Alloy	Olive Drab Chromate over Cadmium	Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B-18-1S(946)	Solder Cup	N (Normal)	Threaded	Female Sockets Plug	Free Hanging (In-Line) Right Angle	Black	Copper Alloy	10	Unshielded	Aluminum Alloy	1 mm	18 mm	Black Zinc Alloy	125 °C	-55 °C	Coupling Nut Rotatable	Metal	DAP Diallyl Phthalate			Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B18-12PZ-417	Solder Cup	Z	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	6	Unshielded	Aluminum Alloy	12 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut	Metal	DAP Diallyl Phthalate	Aluminum Alloy	Olive Drab Chromate over Cadmium	Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B18-1PY-417	Solder Cup	Y	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	10	Unshielded	Aluminum Alloy	1 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut	Metal	DAP Diallyl Phthalate	Aluminum Alloy	Olive Drab Chromate over Cadmium	Silver	Automotive Industrial

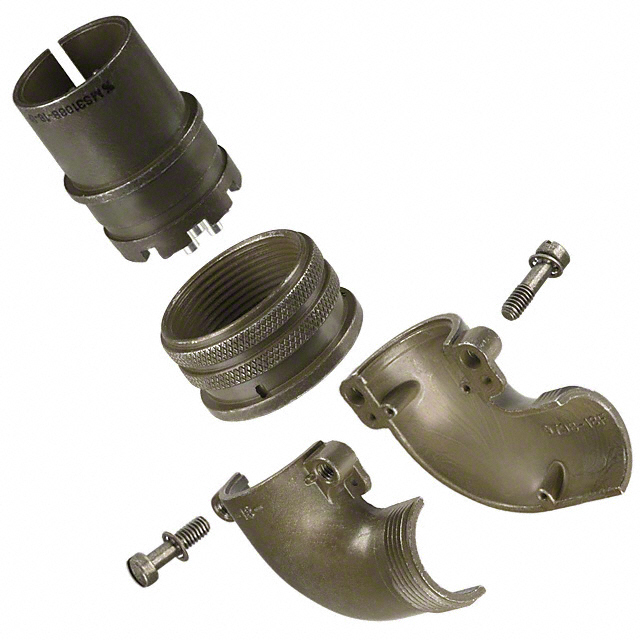

Amphenol Aerospace Operations 97-3108B-18-1P	Solder Cup	N (Normal)	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	10	Unshielded	Aluminum Alloy	1 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut Rotatable	Metal	DAP Diallyl Phthalate			Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B-18-8P(946)	Solder Cup	N (Normal)	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Black	Copper Alloy	8	Unshielded	Aluminum Alloy	8 mm	18 mm	Black Zinc Alloy	125 °C	-55 °C	Coupling Nut Rotatable	Metal	DAP Diallyl Phthalate			Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B18-1P-417	Solder Cup	N (Normal)	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	10	Unshielded	Aluminum Alloy	1 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut	Metal	DAP Diallyl Phthalate	Aluminum Alloy	Olive Drab Chromate over Cadmium	Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B18-4PY	Solder Cup	Y	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	4	Unshielded	Aluminum Alloy	4 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut	Metal	DAP Diallyl Phthalate	Aluminum Alloy	Olive Drab Chromate over Cadmium	Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B-18-11S	Solder Cup	N (Normal)	Threaded	Female Sockets Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	5	Unshielded	Aluminum Alloy	11 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut Rotatable	Metal	DAP Diallyl Phthalate			Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B18-1PZ	Solder Cup	Z	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	10	Unshielded	Aluminum Alloy	1 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut	Metal	DAP Diallyl Phthalate	Aluminum Alloy	Olive Drab Chromate over Cadmium	Silver	Automotive Industrial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
