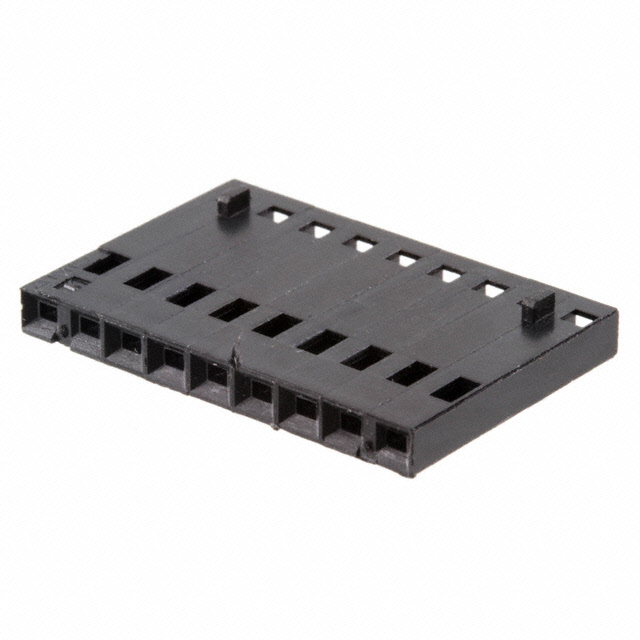

104503-8
ActiveTE Connectivity AMP Connectors
09 MTE PIN HSG SR RIB .100CL ROHS COMPLIANT: YES
104503-8
ActiveTE Connectivity AMP Connectors
09 MTE PIN HSG SR RIB .100CL ROHS COMPLIANT: YES
Description
General part information
104503 Series
9 Rectangular Connectors - Housings Header Black 0.100" (2.54mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 104503-8 |
|---|---|
| Color | Black |
| Connector Type | Header |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -65 °C |
| Pitch | 0.1 in |
