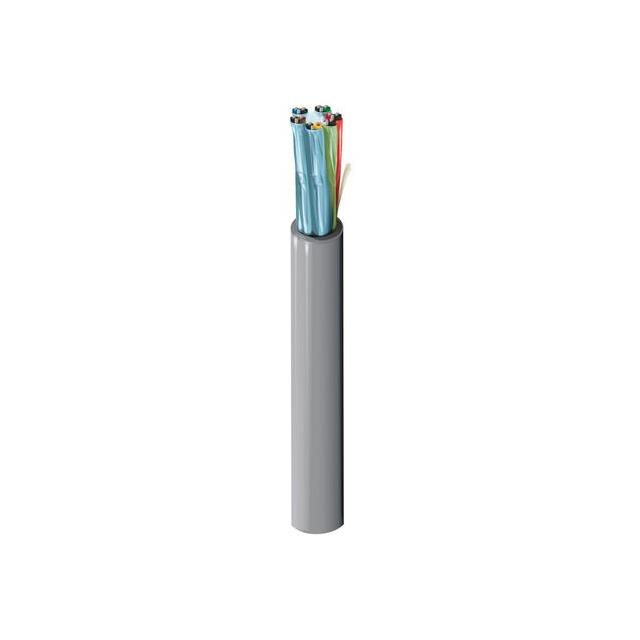

9731 0605000

Active

Belden Inc.

CABLE 12COND 24AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12COND 24AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9731 0605000

Cable Type	Multi-Conductor
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	10.69 mm
Jacket (Insulation) Diameter [diameter]	0.421 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.048 in
Jacket (Insulation) Thickness	1.219 mm
Jacket Color	Chrome
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Features	Wire Gauge	Voltage	Cable Type	Usage	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Number of Conductors	Shield Coverage	Jacket Color	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]
Belden Inc. 9731 0605000	Copper Tinned	32 AWG	7	UL Style 2919	0.048 in	1.219 mm	Poly-Vinyl Chloride (PVC)	Drain Wire	24 AWG	300 V	Multi-Conductor	Computer	Foil	10.69 mm	0.421 in	Aluminum	12	100 %	Chrome	Foam Polyethylene (FPE)	-20 C	80 C
Belden Inc. 9731 060100	Copper Tinned	32 AWG	7	UL Style 2919	0.048 in	1.219 mm	Poly-Vinyl Chloride (PVC)	Drain Wire	24 AWG		Multi-Pair		Foil	10.69 mm	0.421 in	Aluminum	12	100 %	Chrome	Foam Polyethylene (FPE)	-20 C	80 C	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 8.58

General part information

12 (6 Pair Twisted) Conductor Multi-Conductor Cable Chrome 24 AWG Foil 5000' (1524.0m)
