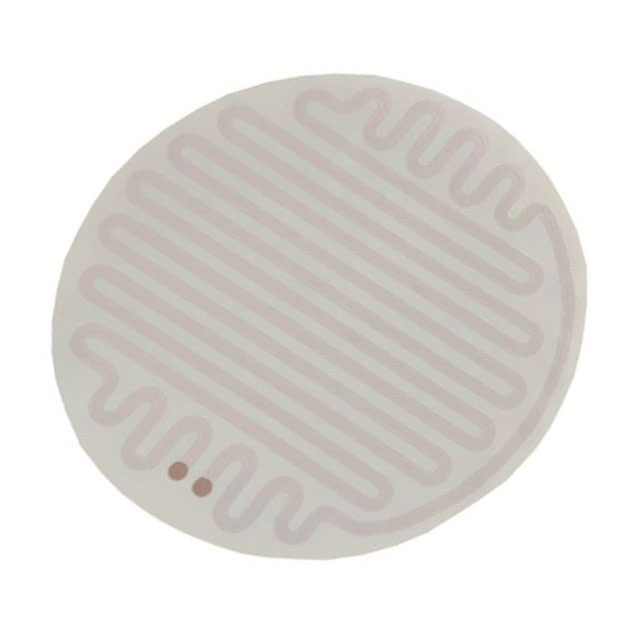

53-461239
ActiveTurboFlex Heaters
FLEX HEATER POLYESTER 12" WIRE
53-461239
ActiveTurboFlex Heaters
FLEX HEATER POLYESTER 12" WIRE
Description
General part information
53-461239
FLEX HEATER POLYESTER 12" WIRE
Technical Specifications
Parameters and characteristics for this part
| Specification | 53-461239 |
|---|---|
| Approval Agency | UL |
| Attachment Method | Pressure Sensitive Adhesive (PSA) |
| Color | Off-White |
| Diameter | 14 in |
| Features | User Selectable Voltage, Leads Potted |
| Length - Lead Wire | 12 in |
| Material | Polyester |
| Material - Insulation | PTFE, Polytetrafluoroethylene |
| Power (Watts) | 1539.4 W |
| Resistance | 0.09 Ohms |
| Shape | Circular |
| Temperature Rating | 250 °F |
| Termination | Wire Leads |
| Type | Flexible Heater, Foil |
| Watt Density | 10 W/in² |
| Wire Gauge | 18 AWG |
