6282-8SG-522
ActiveConxall/Switchcraft

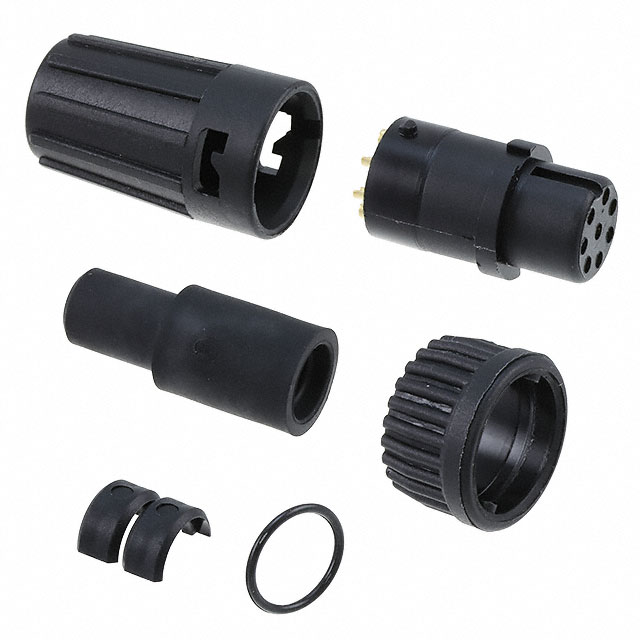

CONN PLUG FMALE 8P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6282-8SG-522
ActiveConxall/Switchcraft
CONN PLUG FMALE 8P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6282-8SG-522 | 6282-8SG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 4.06 - 4.57 mm |
| Cable Opening | - | 0.16 - 0.18 in |
| Cable Opening | - | 0.18 - 0.2 in |
| Cable Opening | - | 4.57 - 5.08 mm |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Cable Opening | - | 5.84 mm |
| Cable Opening [Max] [diameter] | 6.35 mm | 6.35 mm |
| Cable Opening [Max] [diameter] | 0.25 in | 0.23 - 0.25 in |
| Cable Opening [Min] [diameter] | 0.22 in | 0.21 - 0.22 in |
| Cable Opening [Min] [diameter] | 5.59 mm | 5.33 - 5.59 mm |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 8 | 8 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
6282-8SG Series
CONN PLUG FMALE 8P GOLD SLDR CUP
| Part | Ingress Protection | Features | Primary Material | Applications | Connector Type | Color | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Shielding | Mounting Type | Backshell Material, Plating | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Fastening Type | Voltage Rating | Number of Positions | Current Rating (Amps) | Orientation | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 6282-8SG-318 | Weathertight | Backshell | Plastic | Automotive, Communication Systems, Instrumentation | Female Sockets, Plug | Black | Gold | -40 °C | 115 °C | Brass | Unshielded | Free Hanging (In-Line) | Nylon, Polyamide (PA) | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | Bayonet Lock | 600 V | 8 | Varies by Wire Gauge | Keyed | |||||||
Conxall/Switchcraft 6282-8SG-522 | Weathertight | Backshell | Plastic | Automotive, Communication Systems, Instrumentation | Female Sockets, Plug | Black | Gold | -40 °C | 115 °C | Brass | Unshielded | Free Hanging (In-Line) | Nylon, Polyamide (PA) | Bayonet Lock | 600 V | 8 | Varies by Wire Gauge | Keyed | 6.35 mm | 0.25 in | 0.22 in | 5.59 mm | |||||||
Conxall/Switchcraft 6282-8SG-516 | Weathertight | Backshell | Plastic | Automotive, Communication Systems, Instrumentation | Female Sockets, Plug | Black | Gold | -40 °C | 115 °C | Brass | Unshielded | Free Hanging (In-Line) | Nylon, Polyamide (PA) | 4.06 mm | 0.16 in | 0.18 in | 4.57 mm | Bayonet Lock | 600 V | 8 | Varies by Wire Gauge | Keyed | |||||||
Conxall/Switchcraft 6282-8SG-315 | Weathertight | Backshell | Plastic | Automotive, Communication Systems, Instrumentation | Female Sockets, Plug | Black | Gold | -40 °C | 115 °C | Brass | Unshielded | Free Hanging (In-Line) | Nylon, Polyamide (PA) | Bayonet Lock | 600 V | 8 | Varies by Wire Gauge | Keyed | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | |||||||||
Conxall/Switchcraft 6282-8SG-3DC | Weathertight | Backshell | Plastic | Automotive, Communication Systems, Instrumentation | Female Sockets, Plug | Black | Gold | -40 °C | 115 °C | Brass | Unshielded | Free Hanging (In-Line) | Nylon, Polyamide (PA) | Bayonet Lock | 600 V | 8 | Varies by Wire Gauge | Keyed | |||||||||||
Conxall/Switchcraft 6282-8SG-321 | Weathertight | Backshell | Plastic | Automotive, Communication Systems, Instrumentation | Female Sockets, Plug | Black | Gold | -40 °C | 115 °C | Brass | Unshielded | Free Hanging (In-Line) | Nylon, Polyamide (PA) | Bayonet Lock | 600 V | 8 | Varies by Wire Gauge | Keyed | 0.23 in | 0.21 in | 5.33 mm | 5.84 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.26 | |
| 10 | $ 18.70 | |||
| 25 | $ 16.93 | |||
| 50 | $ 15.73 | |||
| 100 | $ 14.65 | |||
| 250 | $ 13.38 | |||
| 500 | $ 12.52 | |||
Description
General part information
6282-8SG Series
8 Position Circular Connector Plug, Female Sockets Solder Cup
