ZX10C60A01

Active

Honeywell Sensing and Productivity Solutions

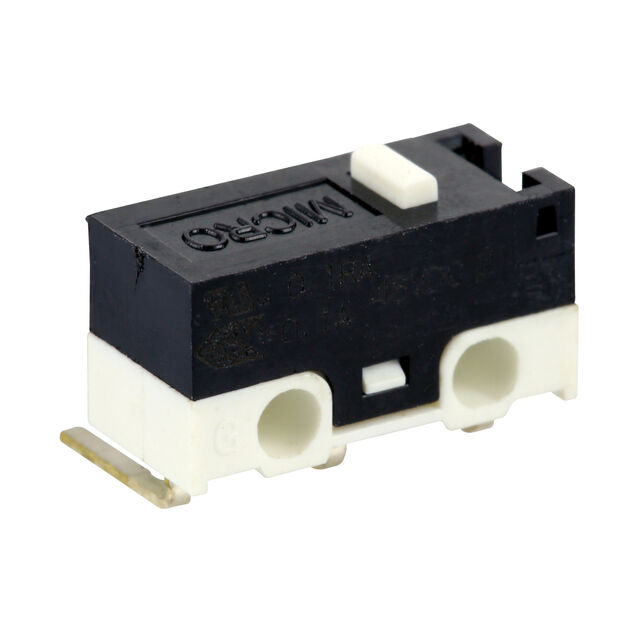

SWITCH SNAP ACT SPDT 100MA 48V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 48V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZX10C60A01	ZX10C Series

Actuator Type	Round (Pin Plunger)	Lever, Straight, Round (Pin Plunger)
Circuit	SPDT	SPDT
Current Rating (Amps)	100 mA	100 mA
Differential Travel	0.012 "	0.012 - 0.05 in
Differential Travel	0.3 mm	0.3 - 1.3 mm
Electrical Life	1000000 Cycles	10000 - 1000000 Cycles
Ingress Protection	-	IP40
Mechanical Life	1000000 Cycles	1000000 - 3000000 Cycles
Mounting Type	Through Hole, Right Angle	Chassis Mount, Through Hole, Right Angle, Through Hole
Operating Force	90 gf	30 - 90 gf
Operating Position	-	0.272 in
Operating Position	-	6.9 mm
Operating Position [x]	0.276 in	0.25 - 0.276 in
Operating Position [x]	7 mm	6.4 - 7 mm
Operating Temperature [Max]	120 °C	85 - 120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.2 mm	0.2 - 0.6 mm
Overtravel	0.008 in	0.008 - 0.025 in
Pretravel	1.3 mm	1.3 - 3.4 mm
Pretravel	0.051 in	0.051 - 0.134 in
Release Force	15 gf	6 - 15 gf
Switch Function	On-Mom	On-Mom
Termination Style	PC Pin	Solder Lug, PC Pin
Voltage Rating - DC	48 V	48 V

SWITCH SNAP ACTION SPDT 0.1A 48V

Part	Mounting Type	Switch Function	Current Rating (Amps)	Operating Force	Overtravel	Overtravel	Operating Position	Operating Position	Actuator Type	Termination Style	Pretravel	Pretravel	Mechanical Life	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Ingress Protection	Differential Travel	Differential Travel	Circuit	Release Force	Operating Position [x]	Operating Position [x]
Honeywell Sensing and Productivity Solutions ZX10C10C01	Chassis Mount	On-Mom	100 mA	30 gf	0.024 in	0.6 mm	0.272 in	6.9 mm	Lever, Straight	Solder Lug	0.134 in	3.4 mm	3000000 Cycles	48 V	85 °C	-40 °C	10000 Cycles	IP40	0.05 in	1.3 mm	SPDT
Honeywell Sensing and Productivity Solutions ZX10C60A01	Through Hole, Right Angle	On-Mom	100 mA	90 gf	0.008 in	0.2 mm			Round (Pin Plunger)	PC Pin	0.051 in	1.3 mm	1000000 Cycles	48 V	120 °C	-40 °C	1000000 Cycles		0.012 "	0.3 mm	SPDT	15 gf	0.276 in	7 mm
Honeywell Sensing and Productivity Solutions ZX10C30B01	Through Hole	On-Mom	100 mA	40 gf	0.025 "	0.6 mm			Lever, Straight	PC Pin	0.134 in	3.4 mm	1000000 Cycles	48 V	120 °C	-40 °C	1000000 Cycles		0.05 in	1.3 mm	SPDT	6 gf	0.25 in	6.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.54

General part information

Switch SPDT Through Hole, Right Angle
