630-025-640-541
ActiveEDAC Inc.
630 SERIES RIGHT ANGLE D-SUB REC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
630-025-640-541
ActiveEDAC Inc.
630 SERIES RIGHT ANGLE D-SUB REC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 630-025-640-541 |
|---|---|
| Backset Spacing | 0.409 in |
| Backset Spacing | 10.4 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Mounting Brackets, Shielded, Board Lock |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
630-025 Series
| Part | Flange Feature | Number of Rows | Current Rating (Amps) | Features | Contact Finish | Contact Type | Shell Material, Finish | Connector Type | Termination | Mounting Type | Contact Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Backset Spacing | Backset Spacing | Color | Contact Finish Thickness | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Connector Style | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Housing/Shell (M3) | 2 | 3 A | Board Lock Mounting Brackets Shielded | Gold | Signal | Nickel Plated Steel | Receptacle Female Sockets | Solder | Board Edge Right Angle Through Hole | Copper Alloy | B DB | 3 | 0.409 in | 10.4 mm | Black | Flash | UL94 V-0 | 85 °C | -55 °C | Polyester Thermoplastic | D-Sub | ||
EDAC Inc. | Housing/Shell (Unthreaded) | 2 | 3 A | Mounting Brackets Shielded | Gold | Signal | Nickel Plated Steel | Receptacle Female Sockets | Solder | Board Edge Right Angle Through Hole | Copper Alloy | B DB | 3 | 0.409 in | 10.4 mm | Black | UL94 V-0 | 85 °C | -55 °C | Polyester Thermoplastic | D-Sub | 15 µin | 0.38 µm | |
EDAC Inc. | Housing/Shell (4-40) | 2 | 3 A | Board Lock Mounting Brackets Shielded | Gold | Signal | Nickel Plated Steel | Receptacle Female Sockets | Solder | Board Edge Right Angle Through Hole | Copper Alloy | B DB | 3 | 0.409 in | 10.4 mm | Black | UL94 V-0 | 85 °C | -55 °C | Polyester Thermoplastic | D-Sub | 30 Áin | 0.76 Ám | |
EDAC Inc. | Housing/Shell (M3) | 2 | 3 A | Board Lock Mounting Brackets Shielded | Gold | Signal | Nickel Plated Steel | Receptacle Female Sockets | Solder | Through Hole Right Angle | Copper Alloy | B DB | 3 | 0.409 in | 10.4 mm | Black | UL94 V-0 | 85 °C | -55 °C | Polyester Thermoplastic | D-Sub | 15 µin | 0.38 µm | |
EDAC Inc. | Housing/Shell (M3) | 2 | 3 A | Board Lock Mounting Brackets Shielded | Gold | Signal | Nickel Plated Steel | Receptacle Female Sockets | Solder | Board Edge Right Angle Through Hole | Copper Alloy | B DB | 3 | 0.409 in | 10.4 mm | Black | UL94 V-0 | 85 °C | -55 °C | Polyester Thermoplastic | D-Sub | 15 µin | 0.38 µm | |
EDAC Inc. | Female Screwlock (4-40) Mating Side | 2 | 3 A | Board Lock Mounting Brackets Shielded | Gold | Signal | Nickel Plated Steel | Receptacle Female Sockets | Solder | Board Edge Right Angle Through Hole | Copper Alloy | B DB | 3 | 0.409 in | 10.4 mm | Black | Flash | UL94 V-0 | 125 °C | -55 °C | Polyester Thermoplastic | D-Sub | ||
EDAC Inc. | Housing/Shell (Unthreaded) | 2 | 3 A | Board Lock Mounting Brackets Shielded | Gold | Signal | Nickel Plated Steel | Receptacle Female Sockets | Solder | Through Hole Right Angle | Copper Alloy | B DB | 3 | 0.409 in | 10.4 mm | Black | UL94 V-0 | 125 °C | -55 °C | Polyester Thermoplastic | D-Sub | 15 µin | 0.38 µm | |
EDAC Inc. | Female Screwlock (4-40) Mating Side | 2 | 3 A | Board Lock Mounting Brackets Shielded | Gold | Signal | Nickel Plated Steel | Receptacle Female Sockets | Solder | Through Hole Right Angle | Copper Alloy | B DB | 3 | 0.409 in | 10.4 mm | Black | Flash | UL94 V-0 | 85 °C | -55 °C | Polyester Thermoplastic | D-Sub | ||
EDAC Inc. | Housing/Shell (M3) | 2 | 3 A | Board Lock Mounting Brackets Shielded | Gold | Signal | Nickel Plated Steel | Receptacle Female Sockets | Solder | Through Hole Right Angle | Copper Alloy | B DB | 3 | 0.409 in | 10.4 mm | Black | UL94 V-0 | 85 °C | -55 °C | Polyester Thermoplastic | D-Sub | 30 Áin | 0.76 Ám | |
EDAC Inc. | Housing/Shell (Unthreaded) | 2 | 3 A | Board Lock Mounting Brackets Shielded | Gold | Signal | Nickel Plated Steel | Receptacle Female Sockets | Solder | Board Edge Right Angle Through Hole | Copper Alloy | B DB | 3 | 0.409 in | 10.4 mm | Black | UL94 V-0 | 125 °C | -55 °C | Polyester Thermoplastic | D-Sub | 30 Áin | 0.76 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.29 | |
| 10 | $ 5.58 | |||
| 25 | $ 5.04 | |||
| 40 | $ 4.78 | |||
| 80 | $ 4.44 | |||
| 230 | $ 3.97 | |||
| 440 | $ 3.72 | |||
| 1000 | $ 3.43 | |||
| 3000 | $ 3.14 | |||
Description
General part information
630-025 Series

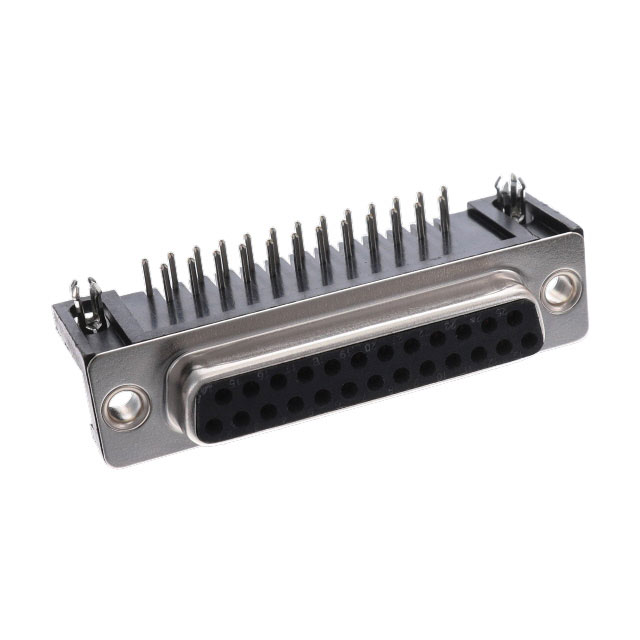

25 Position D-Sub Receptacle, Female Sockets Connector
Documents
Technical documentation and resources
