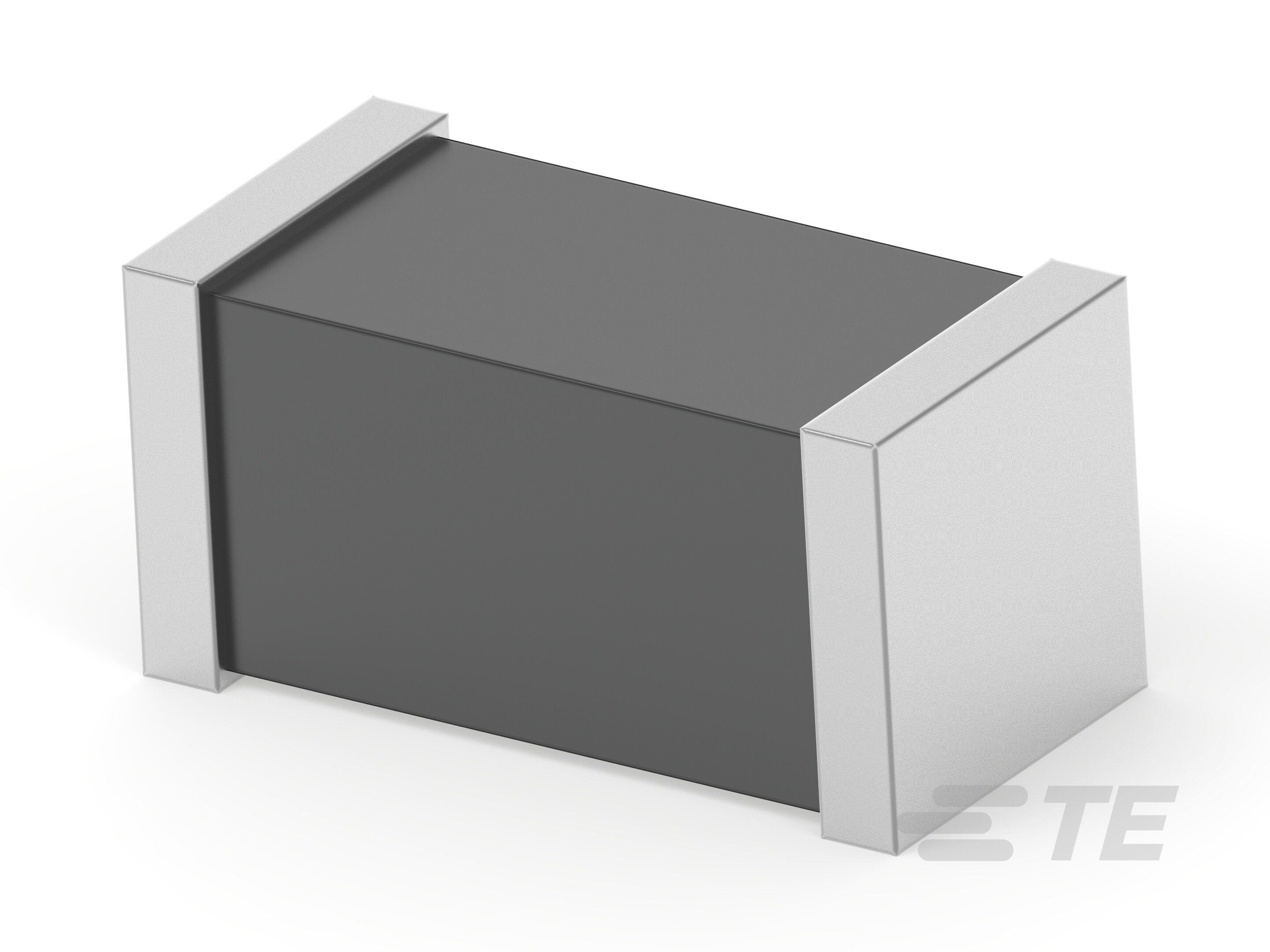

Specification	BMC1EY0120AG

Current Rating (Max)	1.5 A
DC Resistance (DCR) (Max)	75 mOhm
Filter Type	Signal Line
Height (Max)	0.024 in
Impedance	120 Ohms
Mounting Type	Surface Mount
Number of Lines	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	0402 (1005 Metric)
Size / Dimension Length	0.039 in
Size / Dimension Width	0.02 in

Sigma BMC Series

...

Part	DC Resistance (DCR) (Max)	Package / Case	Current Rating (Max)	Height (Max)	Filter Type	Size / Dimension Width	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Impedance	Number of Lines
TE Connectivity AMP Connectors BMC1EY0070AN	400 mOhm	0402 (1005 Metric)	200 mA	0.024 in	Signal Line	0.02 in	0.039 in	125 °C	-55 °C	Surface Mount	70 Ohms	1
TE Connectivity AMP Connectors BMC1EY0100AN	450 mOhm	0402 (1005 Metric)	200 mA	0.024 in	Signal Line	0.02 in	0.039 in	125 °C	-55 °C	Surface Mount	100 Ohms	1
TE Connectivity AMP Connectors BMC1JY0120AN	150 mOhm	0603 (1608 Metric)	400 mA	0.037 in		0.031 in	0.063 in	125 °C	-55 °C	Surface Mount		1
TE Connectivity AMP Connectors BMC1JY0240AN	170 mOhm	0603 (1608 Metric)	500 mA	0.037 in	Signal Line	0.031 in	0.063 in	125 °C	-55 °C	Surface Mount	240 Ohms	1
TE Connectivity AMP Connectors BMC2CY1200AN	350 mOhm	1204 (3210 Metric)	350 mA	0.051 in	Signal Line	0.063 in	0.126 in	125 °C	-55 °C	Surface Mount	1200 Ohms	1
TE Connectivity AMP Connectors BMC1HY0300AN	900 mOhm	0201 (0603 Metric)	150 mA	0.013 in	Signal Line	0.012 in	0.024 in	125 °C	-55 °C	Surface Mount	300 Ohms	1
TE Connectivity AMP Connectors BMC2AY0031AN	100 mOhm	0805 (2012 Metric)	300 mA	0.043 in	Signal Line	0.049 in	0.079 in	125 °C	-55 °C	Surface Mount	31 Ohms	1
TE Connectivity AMP Connectors BMC2AY1500AN	700 mOhm	0805 (2012 Metric)	300 mA	0.043 in	Signal Line	0.049 in	0.079 in	125 °C	-55 °C	Surface Mount	1500 Ohms	1
TE Connectivity AMP Connectors BMC1EY0300AN	750 mOhm	0402 (1005 Metric)	100 mA	0.024 in	Signal Line	0.02 in	0.039 in	125 °C	-55 °C	Surface Mount	300 Ohms	1
TE Connectivity AMP Connectors BMC1HY0100AN	400 mOhm	0201 (0603 Metric)	200 mA	0.013 in	Signal Line	0.012 in	0.024 in	125 °C	-55 °C	Surface Mount	100 Ohms	1
