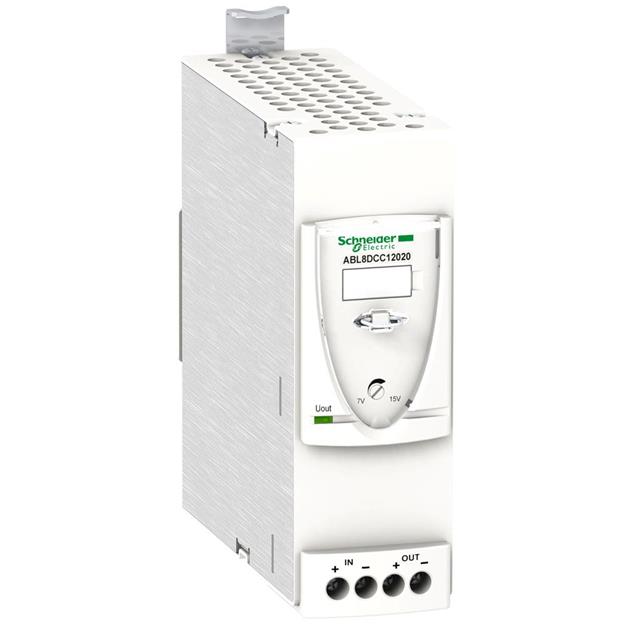

ABL8DCC12020
ActiveSCHNEIDER ELECTRIC
CONVERTER MODULE, 12V, 2A, 24W
ABL8DCC12020
ActiveSCHNEIDER ELECTRIC
CONVERTER MODULE, 12V, 2A, 24W
Description
General part information
ABL8DCC12020
CONVERTER MODULE, 12V, 2A, 24W
Technical Specifications
Parameters and characteristics for this part
| Specification | ABL8DCC12020 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | IEC, EAC, UL, EN, cCSAus, RCM |
| Current - Output (Max) | 2 A |
| DC Voltage - Input (Max) | 28.8 V |
| DC Voltage - Input (Min) | 24 V |
| Efficiency | 82 % |
| Features | IP20 |
| Input Type | DC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 24 W |
| Size / Dimension Height | 2.56 in |
| Size / Dimension Length | 6.5 in |
| Size / Dimension Width | 5.71 in |
| Standard Number | 60950-1 |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 12 V |
