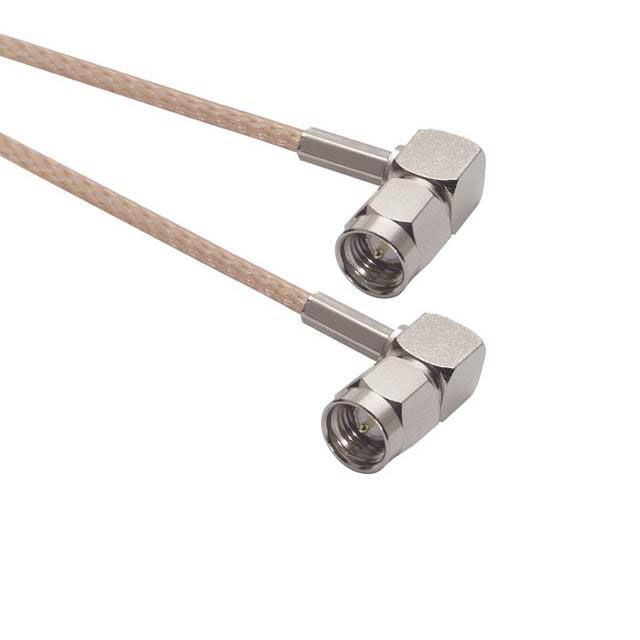

CCSR316-2.5
ActivePasternack
CA SMA RA M-M RG316/U 2.5'
CCSR316-2.5
ActivePasternack
CA SMA RA M-M RG316/U 2.5'
Description
General part information
CCSR316-2.5
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | CCSR316-2.5 |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Brown |
| Length | 30 in |
| Overall Impedance | 50 Ohms |
| Style | SMA |
