1377173-5
ObsoleteTE Connectivity AMP Connectors
CONN RING CIRC 14-16AWG CRIMP
1377173-5
ObsoleteTE Connectivity AMP Connectors
CONN RING CIRC 14-16AWG CRIMP
Description
General part information
1377173-5

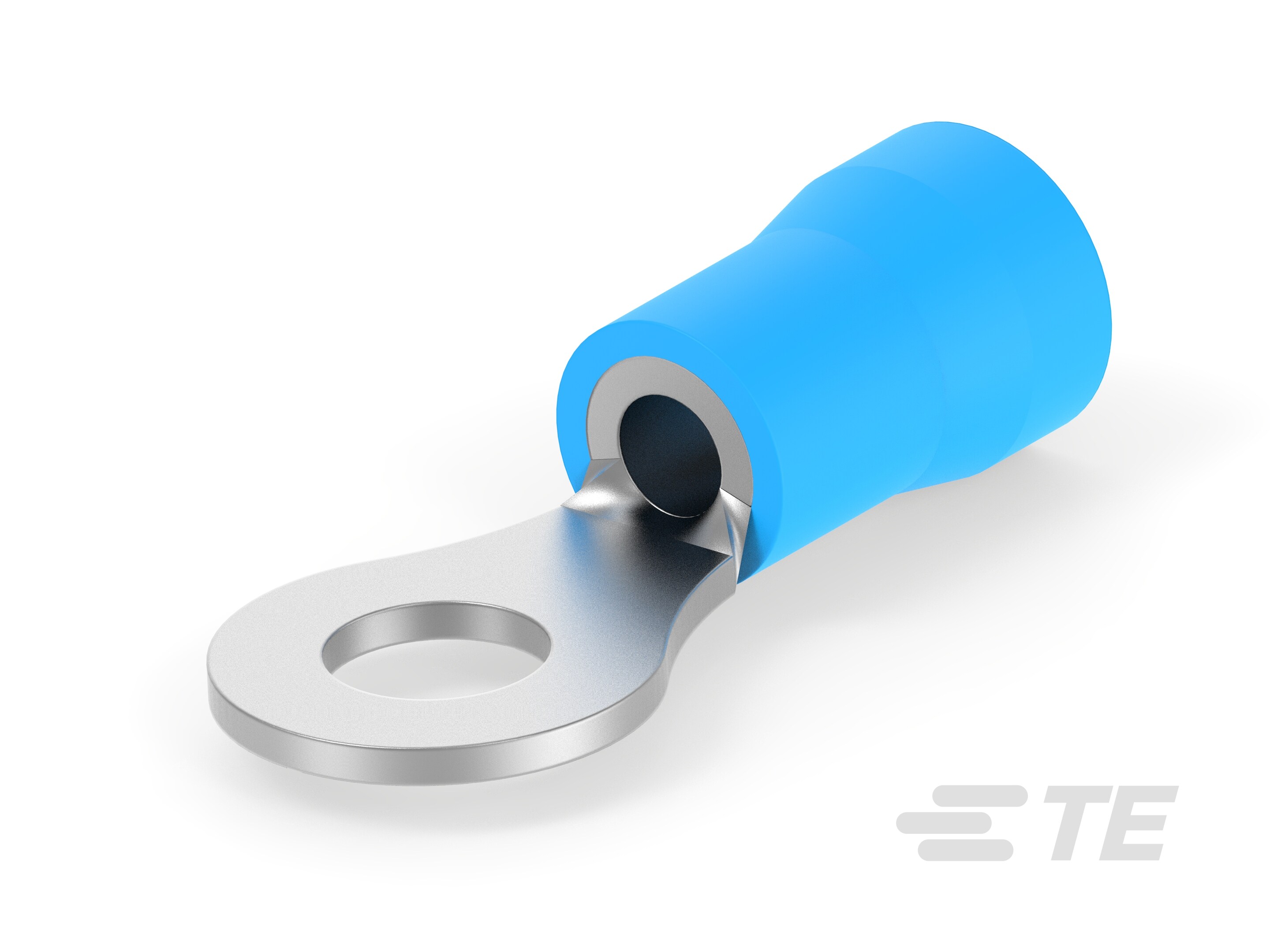

Closed Ring Tongue Terminal, 16 – 14 AWG, M5 Stud, 5.21 mm [.205 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
Technical Specifications
Parameters and characteristics for this part
| Specification | 1377173-5 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 0.878 in |
| Mounting Type | Free Hanging (In-Line) |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.032 in |
| Width - Outer Edges | 0.343 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
