XS108B3NAL2
ActiveSCHNEIDER ELECTRIC

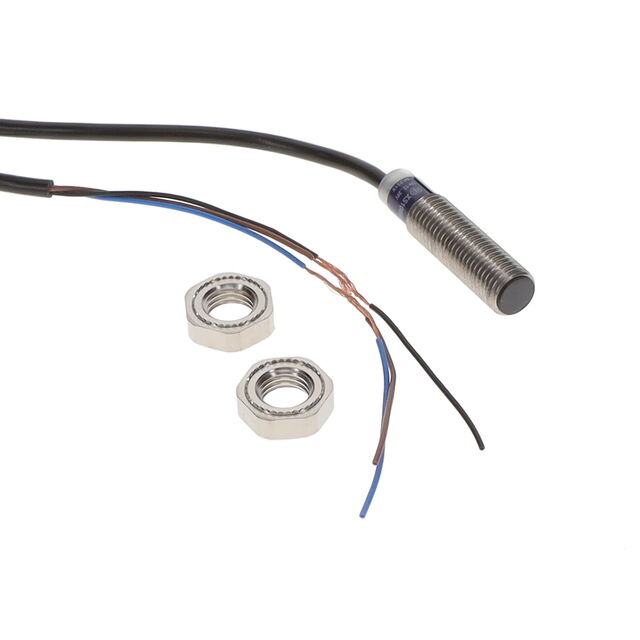

INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M8, 2.5 MM, NPN, 12 V TO 24 V, PRE-WIRED
XS108B3NAL2
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M8, 2.5 MM, NPN, 12 V TO 24 V, PRE-WIRED
Description
General part information
XS108B3NAL2
Inductive Proximity Sensor 0.098" (2.5mm) IP65, IP67 Cylinder, Threaded - M8
Technical Specifications
Parameters and characteristics for this part
| Specification | XS108B3NAL2 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP65, IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | 3-Wire, NPN-NO |
| Package / Case | Cylinder, Threaded - M8 |
| Sensing Distance | 0.098 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
