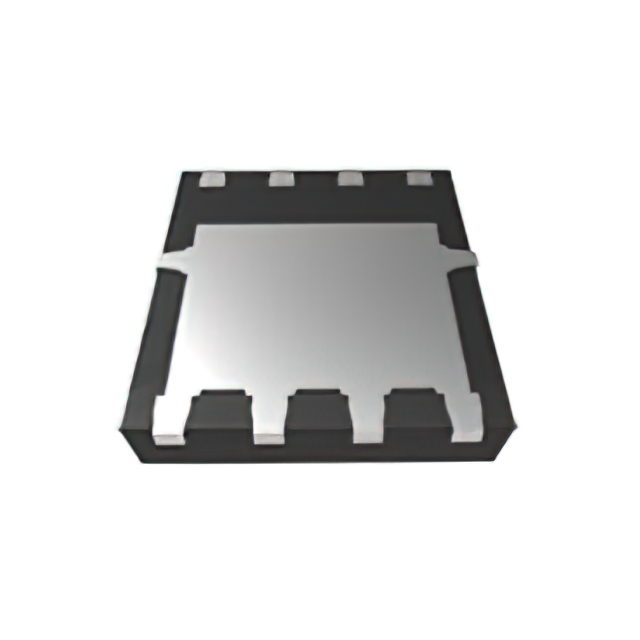

Specification	MCAC1D1N03YL-TP

Current - Continuous Drain (Id) (Tc)	240 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On)	4.5 V
Drive Voltage (Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Max)	114 nC, 114 nC
Input Capacitance (Ciss) (Max)	6315 pF
Mounting Type	Surface Mount
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-55 °C
Package / Case	8-PowerTDFN
Package Name	DFN5060
Power Dissipation (Max)	104 W
Rds On (Max)	1.1 mOhm
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max)	2.5 V
