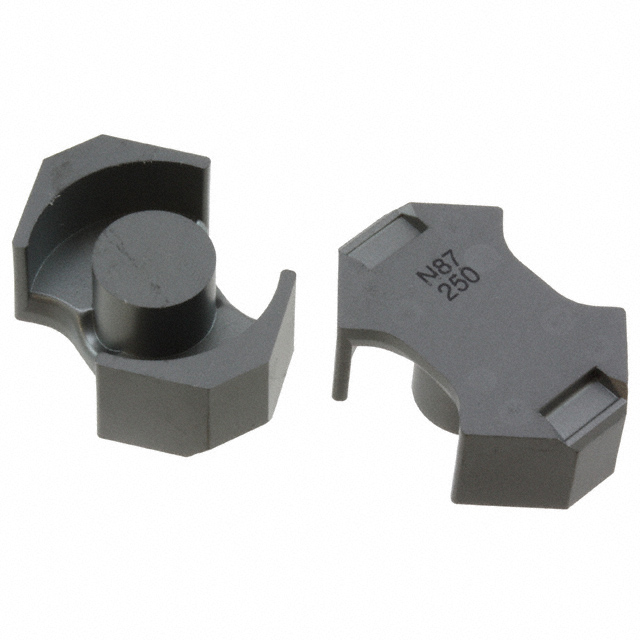

Specification	B65811J0250A087

Core Factor (ΣI/A) mm⁻¹	0.59 mm⁻¹
Core Type	RM
Effective Area (Ae)	64 mm²
Effective Length (le)	38 mm
Effective Magnetic Volume (Ve)	2430 mm³
Effective Permeability (µe)	118
Finish	Uncoated
Gap	Gapped
Height	0.324 in
Inductance Factor (Al)	250 nH
Initial Permeability (µi)	2200
Length	0.913 in
Material	N87
Minimum Core Cross Section (Amin) (mm²)	55 mm²
Package Name	RM 8
Tolerance	3 %
Width	0.433 in
