XCKD2106N12
ActiveSCHNEIDER ELECTRIC

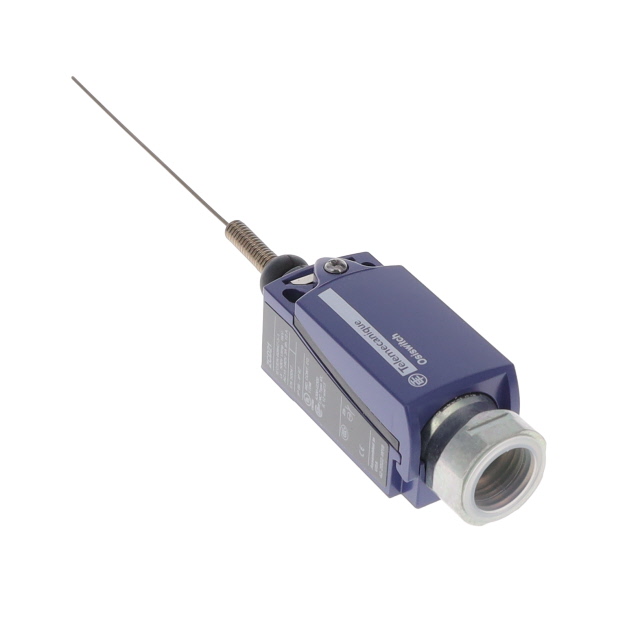

LIMIT SWITCH, WOBBLE COIL SPRING, SPDT-1NO, SPDT-NC, 10 A, 240 V, 0.13 N
XCKD2106N12
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH, WOBBLE COIL SPRING, SPDT-1NO, SPDT-NC, 10 A, 240 V, 0.13 N
Description
General part information
XCKD2106N12
Switch DPDT (DB/DM) Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | XCKD2106N12 |
|---|---|
| Actuator Type | Cat Whisker, Spring |
| Circuit | DPDT (DB/DM) |
| Current Rating | 3 A, 270 mA |
| Electrical Life (Cycles) | 5000000 Cycles |
| Mechanical Life (Cycles) | 5000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
