LCCA31039-FT1
ActivePasternack
PLENUM LOW PIM 4.3-10 MALE TO NE
LCCA31039-FT1
ActivePasternack
PLENUM LOW PIM 4.3-10 MALE TO NE
Description
General part information
LCCA31039-FT1

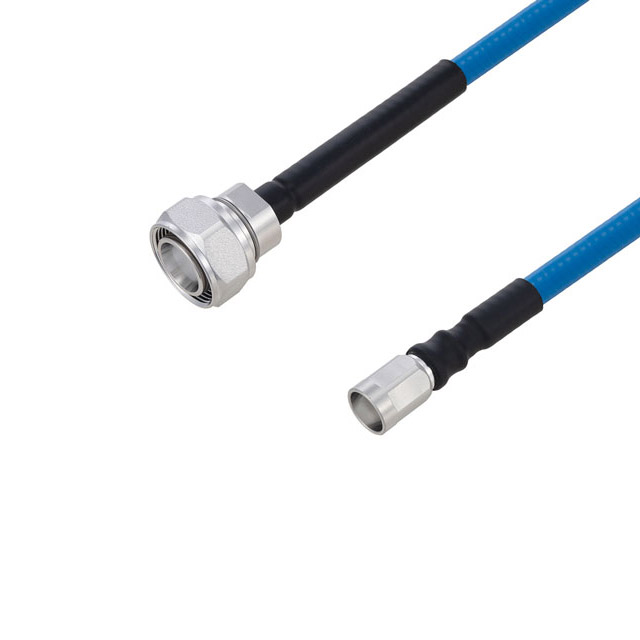

Cable Assembly Coaxial 4.3/10 to NEX SPP-250LLPL 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA31039-FT1 |
|---|---|
| 1st Connector | 4.3/10 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 4.3 mm |
| 1st Connector Dimension (2) | 10 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size (Dimension 1) | 4.3, 4.3 mm |
| 1st Connector Size (Dimension 2) | 10, 10 mm |
| 1st Connector Type | Plug |
| 1st Contact Gender | Male |
| 2nd Connector | NEX10 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPP, 250LLPL |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 12 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | 4.3/10 to NEX |
