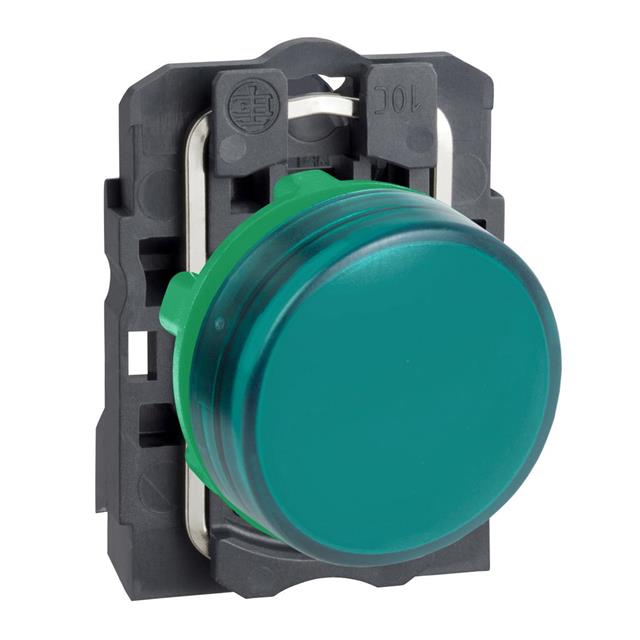

XB5AVM3
ActiveSCHNEIDER ELECTRIC
LED PANEL MOUNT INDICATOR, PILOT LIGHT, GREEN, 240 VAC, 22 MM, IP66, NEMA 4X, NEMA 13
XB5AVM3
ActiveSCHNEIDER ELECTRIC
LED PANEL MOUNT INDICATOR, PILOT LIGHT, GREEN, 240 VAC, 22 MM, IP66, NEMA 4X, NEMA 13
Description
General part information
XB5AVM3
LED Panel Indicator 230V ~ 240V 14mA Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | XB5AVM3 |
|---|---|
| Current | 14 mA |
| Ingress Protection | IP69, IP67, NEMA 4X, 13, IP69K, IP66 |
| Lens Color | Green |
| Lens Diameter | 30 mm |
| Lens Style | Round, Flat Top |
| Panel Cutout Dimension | 0.87 " |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Termination Style | Screw Terminal |
| Type | LED |
| Voltage (Max) | 240 V |
| Voltage (Min) | 230 V |
