UAL10-3R3F8
ActiveBourns Inc.
RES CHAS MNT 3.3 OHM 1% 10W
UAL10-3R3F8
ActiveBourns Inc.
RES CHAS MNT 3.3 OHM 1% 10W
Description
General part information
UAL10-3R3F8

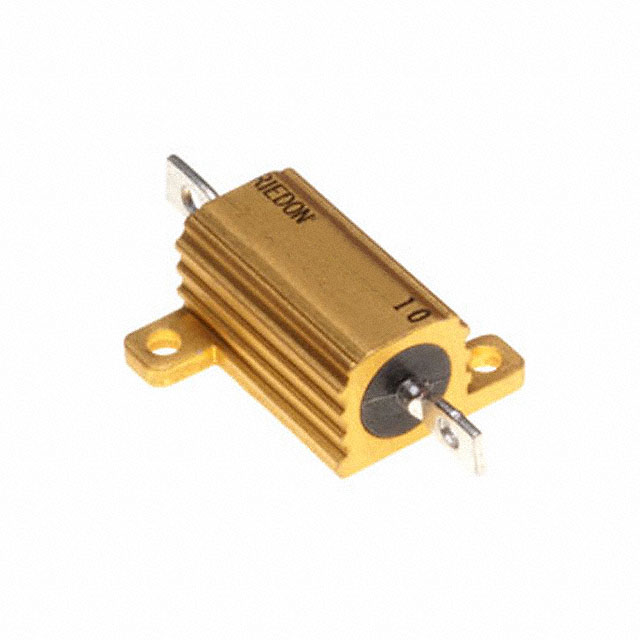

3.3 Ohms ±1% 10W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | UAL10-3R3F8 |
|---|---|
| Coating | Aluminum |
| Composition | Wirewound |
| Features | Safety, Pulse Withstanding, Current Sense, Flame Proof |
| Height - Seated (Max) | 0.417 in |
| Housing Type | Aluminum |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 275 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Box, Axial |
| Power (Watts) | 10 W |
| Resistance | 3.3 Ohm |
| Size / Dimension Length | 0.752 in |
| Size / Dimension Width | 0.799 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
