XS118B3PCM12
ActiveSCHNEIDER ELECTRIC

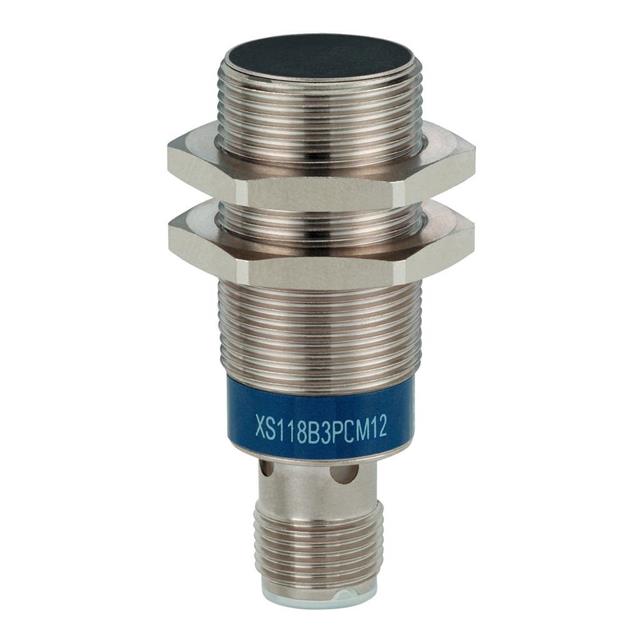

INDUCTIVE SENSOR XS1 M18, PNP NO
XS118B3PCM12
ActiveSCHNEIDER ELECTRIC
INDUCTIVE SENSOR XS1 M18, PNP NO
Description
General part information
XS118B3PCM12
Inductive Proximity Sensor 0.315" (8mm) IP65, IP67, IP69K Cylinder, Threaded - M18
Technical Specifications
Parameters and characteristics for this part
| Specification | XS118B3PCM12 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67, IP65, IP69K |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NC, NO, 4-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance | 0.315 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
