TET2000-12-086RA
ActiveBel Fuse Inc.

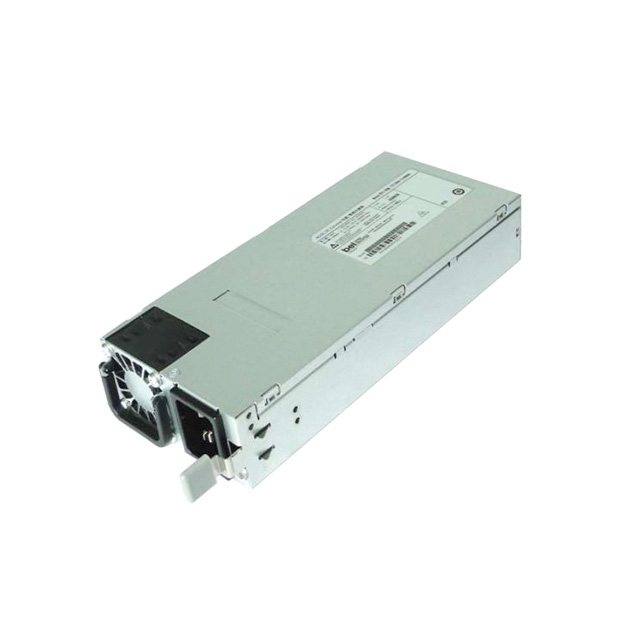

AC/DC POWER SUPPLY SINGLE-OUT 12V 169A 2079W
TET2000-12-086RA
ActiveBel Fuse Inc.
AC/DC POWER SUPPLY SINGLE-OUT 12V 169A 2079W
Description
General part information
TET2000-12-086RA
Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC, 180 ~ 300 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | TET2000-12-086RA |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 169 A |
| Efficiency | 95.3 % |
| Features | Standby Output, Remote On/Off, I2C Interface, Remote Sensing, PFC, Load Sharing, PMBus™, Universal Input, Hot Swappable |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 2028 W |
| Size / Dimension Height | 1.57 in |
| Size / Dimension Length | 7.68 in |
| Size / Dimension Width | 3.39 in |
| Type | Front End |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 300 VDC |
| Voltage - Input (DC) Minimum | 180 VDC |
| Voltage - Isolation | 4300 VDC |
| Voltage - Output 1 | 12 V |
