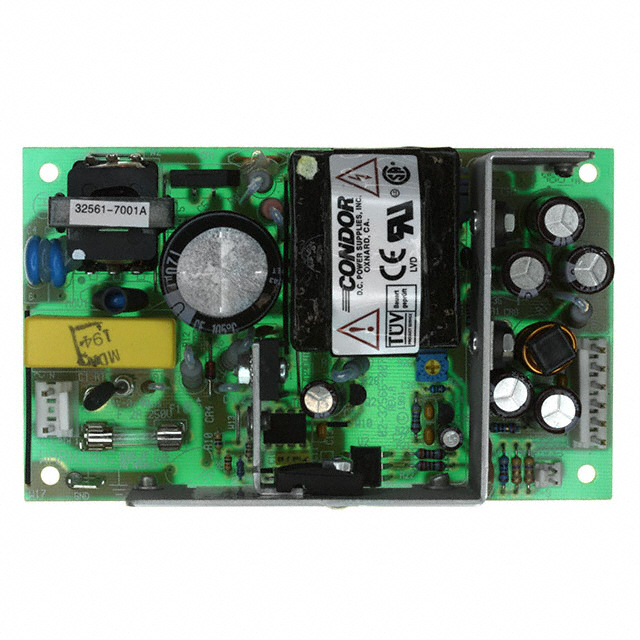

GPC40-15G
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 15V 40W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GPC40-15G |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 2.7 A |
| Efficiency | 70 % |
| Features | Remote Sense, Universal Input, Adjustable Output |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 50 W, 40 W |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [x] | 5 in |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 1.28 in |
| Size / Dimension [z] | 32.5 mm |
| Type | Open Frame |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GPC40-15G
Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
