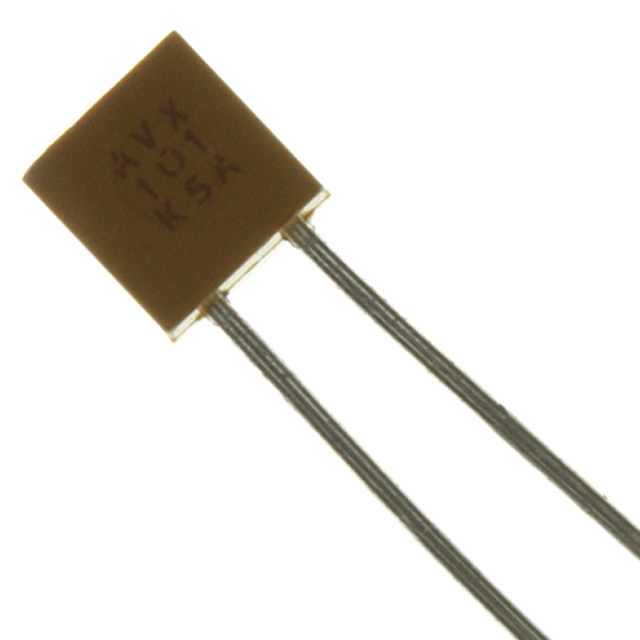

MR045C222MAA
ActiveKYOCERA AVX
CAP CER 2200PF 50V X7R RADIAL
MR045C222MAA
ActiveKYOCERA AVX
CAP CER 2200PF 50V X7R RADIAL
Description
General part information
MR045C222MAA
2200 pF ±20% 50V Ceramic Capacitor X7R Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | MR045C222MAA |
|---|---|
| Applications | General Purpose |
| Capacitance | 2200 pF |
| Height - Seated (Max) | 0.2 in |
| Lead Spacing | 0.1 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.19 in |
| Size / Dimension Width | 0.09 in |
| Temperature Coefficient | X7R |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
